Hull

● Modified ‘V’ planing hull w/ TrELiS Ⓓ

● Back Cove white iso-npg gelcoat w/ vinylester backup resin

● VIP Resin Infused Hull w/ PVC foam core bottom and topsides

● VIP Resin Infused foam core stringer system w/ integrated stabilizer

tapping plates

● Painted boot stripe

● Molded cove stripe depression w/ “gold or silver leaf” style stripe and

Back Cove Heron

Deck

● Back Cove white gelcoat w/ graystone anti-skid on walking surfaces

● VIP Resin infused balsa core sandwich structure

● Mooring cleats forward, aft and mid-ship (aft cleats are pull-up style)

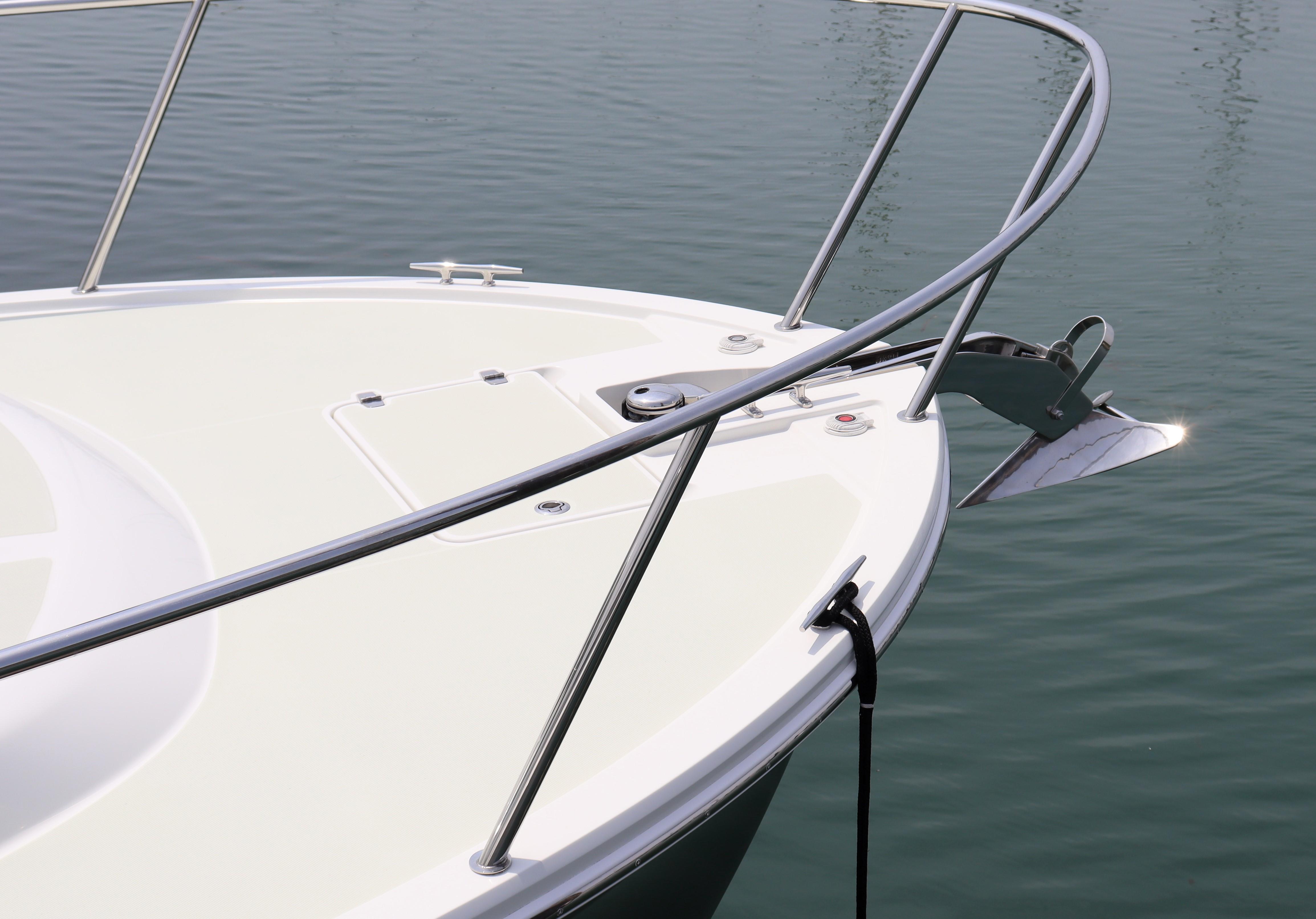

● Stainless steel bow roller, single anchor

● Anchor locker w/ ground tackle storage

● Stainless steel flagstaff receiver

● Removable burgee staff

● LED hard top mounted running lights all-around anchor/ nav light

● Teak accent stripe on cabin side

● Custom 1-1/4’’ 316L stainless steel perimeter rail

● SS handrails on hard top, port and starboard

● Compressed air horn on hard top (mast optional)

● (4) opening port lights w/ insect screens and shades

● Port & starboard molded steps leading to side and fore deck

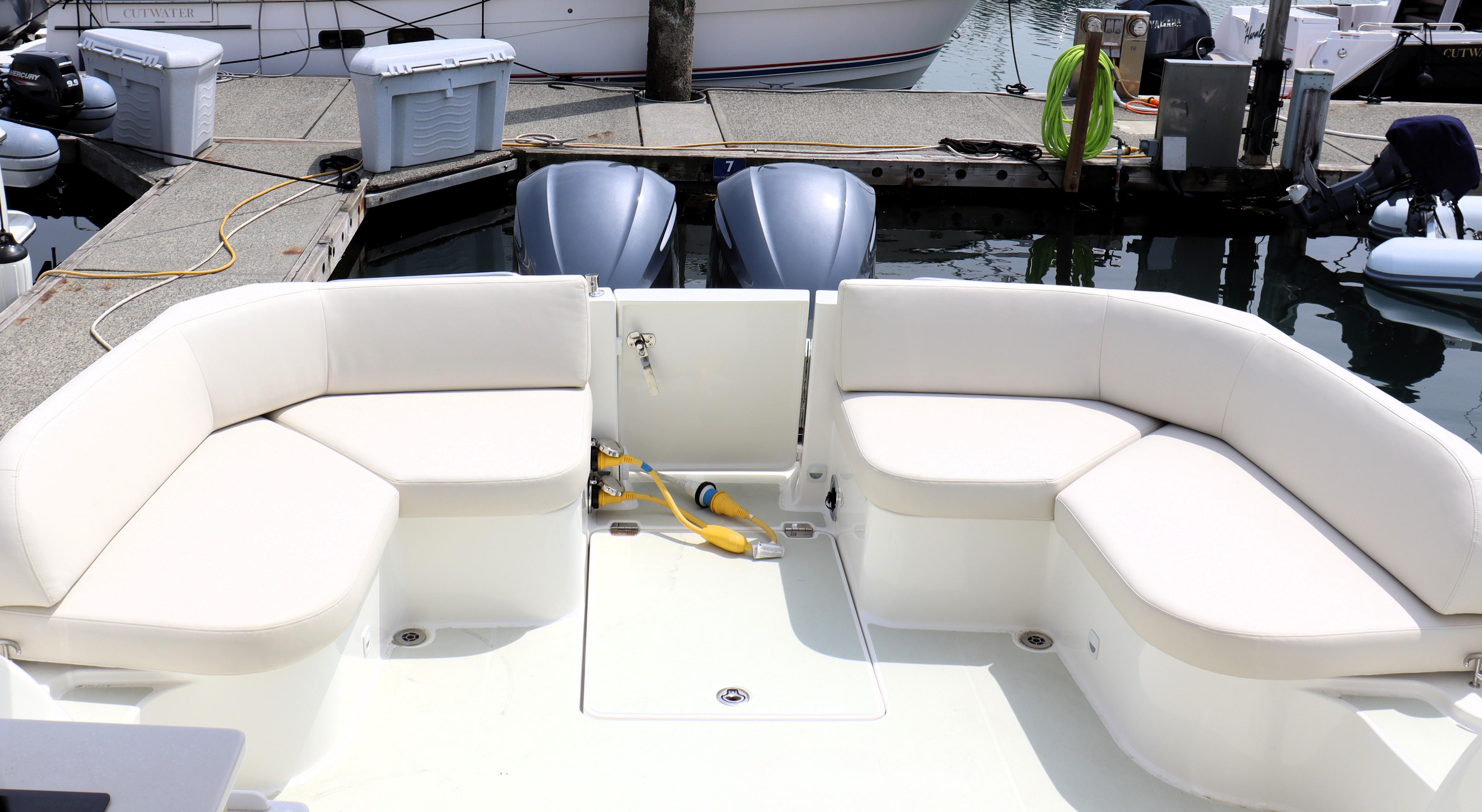

● Molded quarter seating in cockpit w/ storage, port, and starboard

● Transom door on centerline

● Cockpit hatch to lazarette

● P&S swim steps w/ SS under-mount swim ladder on starboard side

● Hot and cold cockpit shower

● Self-draining cockpit

● Acrylic, companionway sliding door with screen

● Stainless steel cockpit grab rails behind cockpit seats on coaming

● Swim step engine well w/drain and hinged hatch cover

● Transom mounted stainless steel grab rails at swim steps (P&S)

Fuel System

● 242 US gallon aluminum fuel tank w/ 1.5” deck fill to port; vented with

overfill protection

● Evaporative emission carbon canister

● 25 US gallon vented cross-linked polyethylene diesel tank w/ 1.5” keyed

deck fill on transom

● Racor fuel/water separator filter for generator

Mechanical Systems

● Electronic steering

● Electric actuated, Zipwake dynamic control system w/auto control

● Sleipner bow thruster w/ joystick control (SE50)

● Hot and cold pressurized water

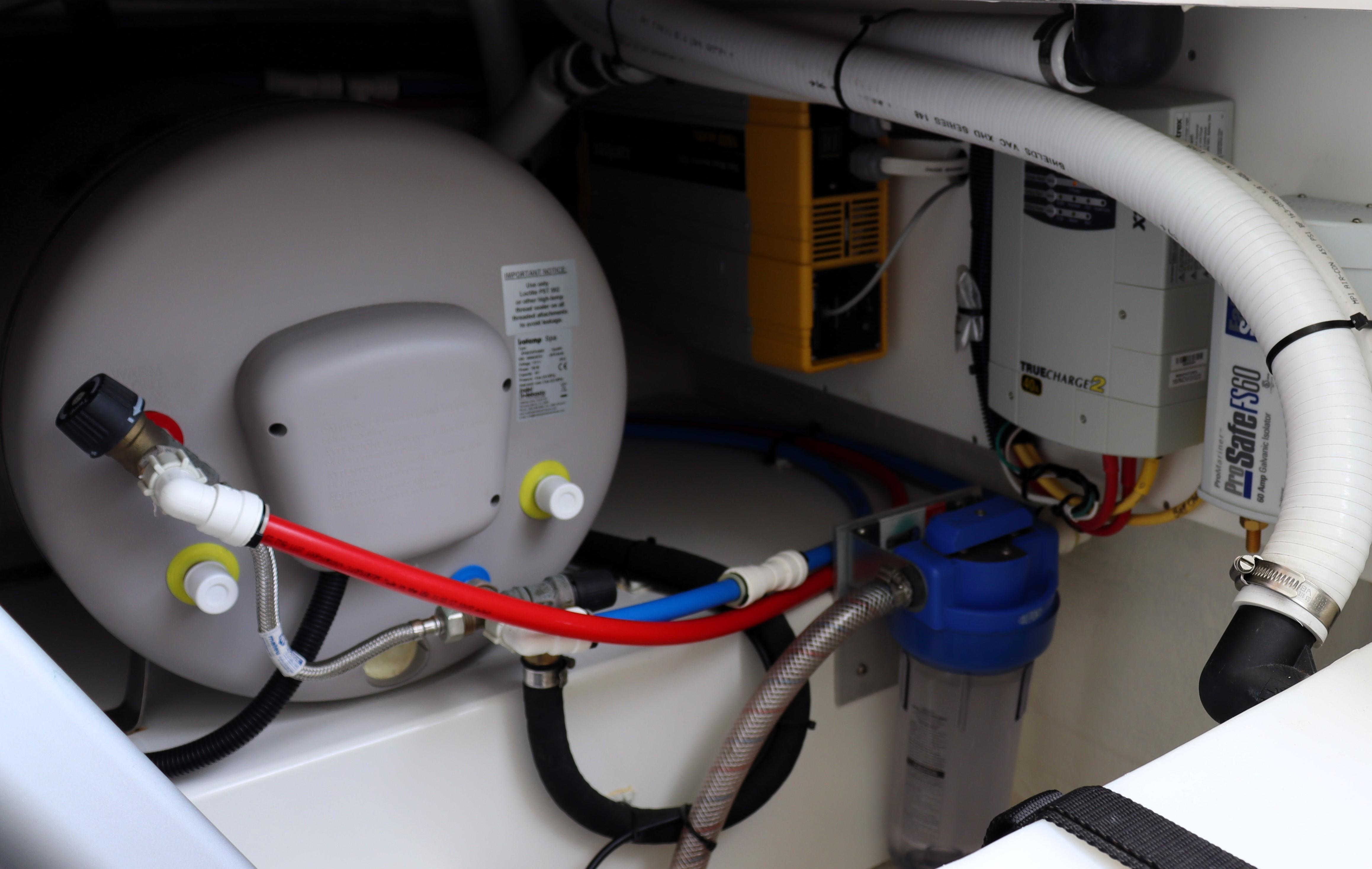

● 11 gallon water heater w/ pressure relief valve plumbed to thru-hull

● Marelon sea valves on underwater thru-hulls

● Below deck air conditioning w/ reverse cycle heat 8kBTU

● Xintex-Fireboy automatic, clean agent fire extinguishing system in

lazarette w/ manual backup

● Bronze raw water strainer on generator and AC intakes

● Portable fire extinguishers in all accommodation spaces

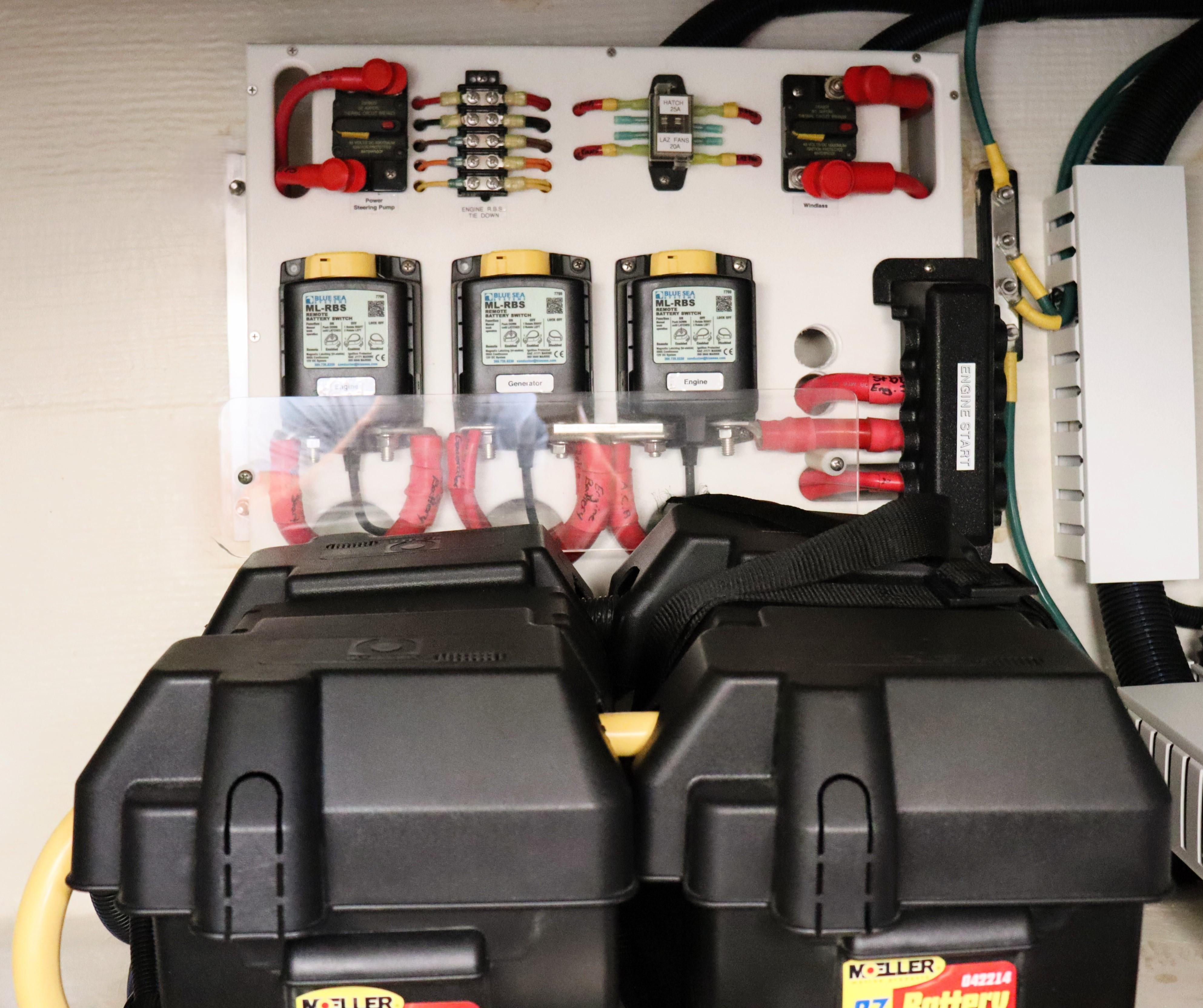

Electrical Systems

● Two engine alternators (one per engine)

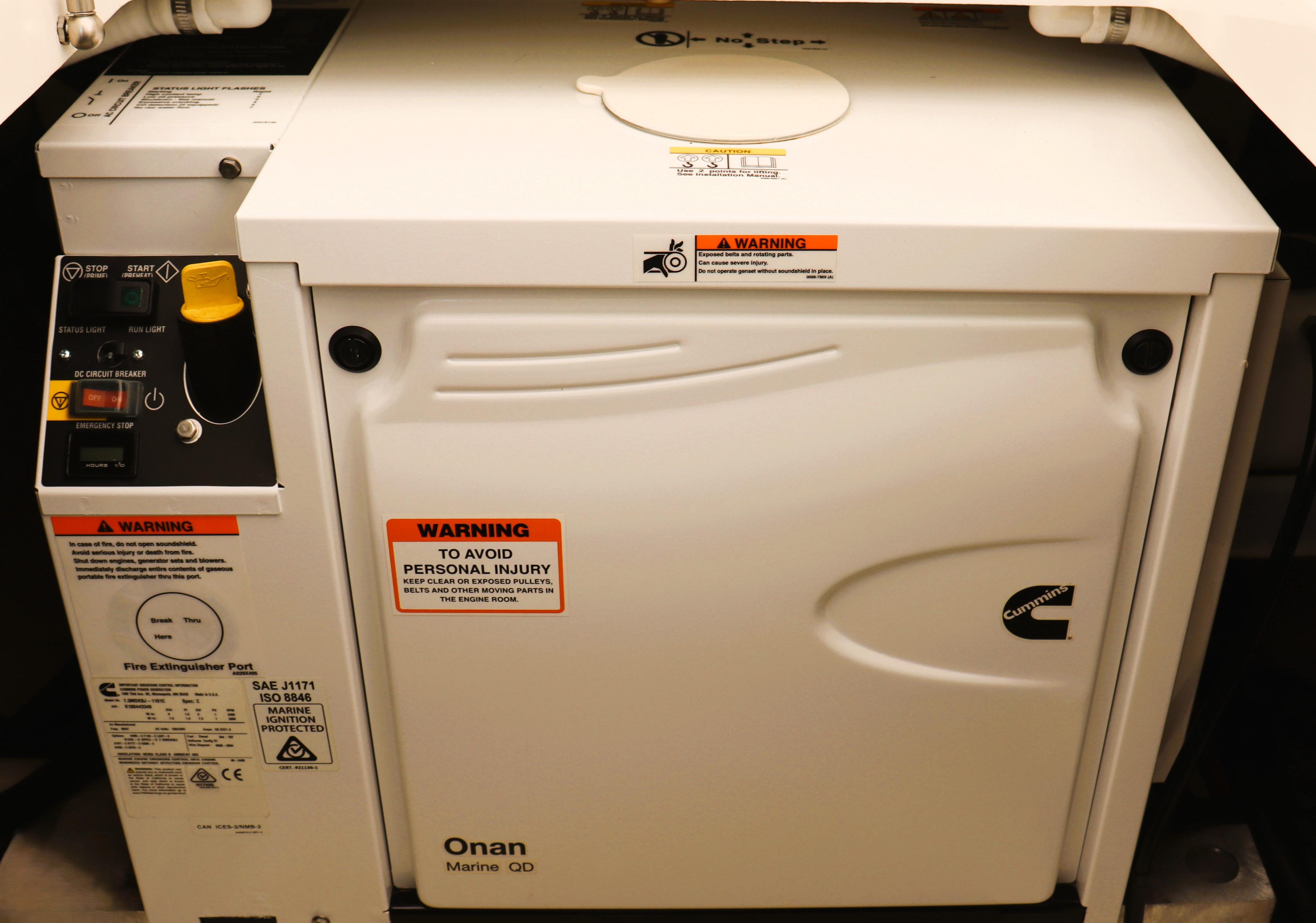

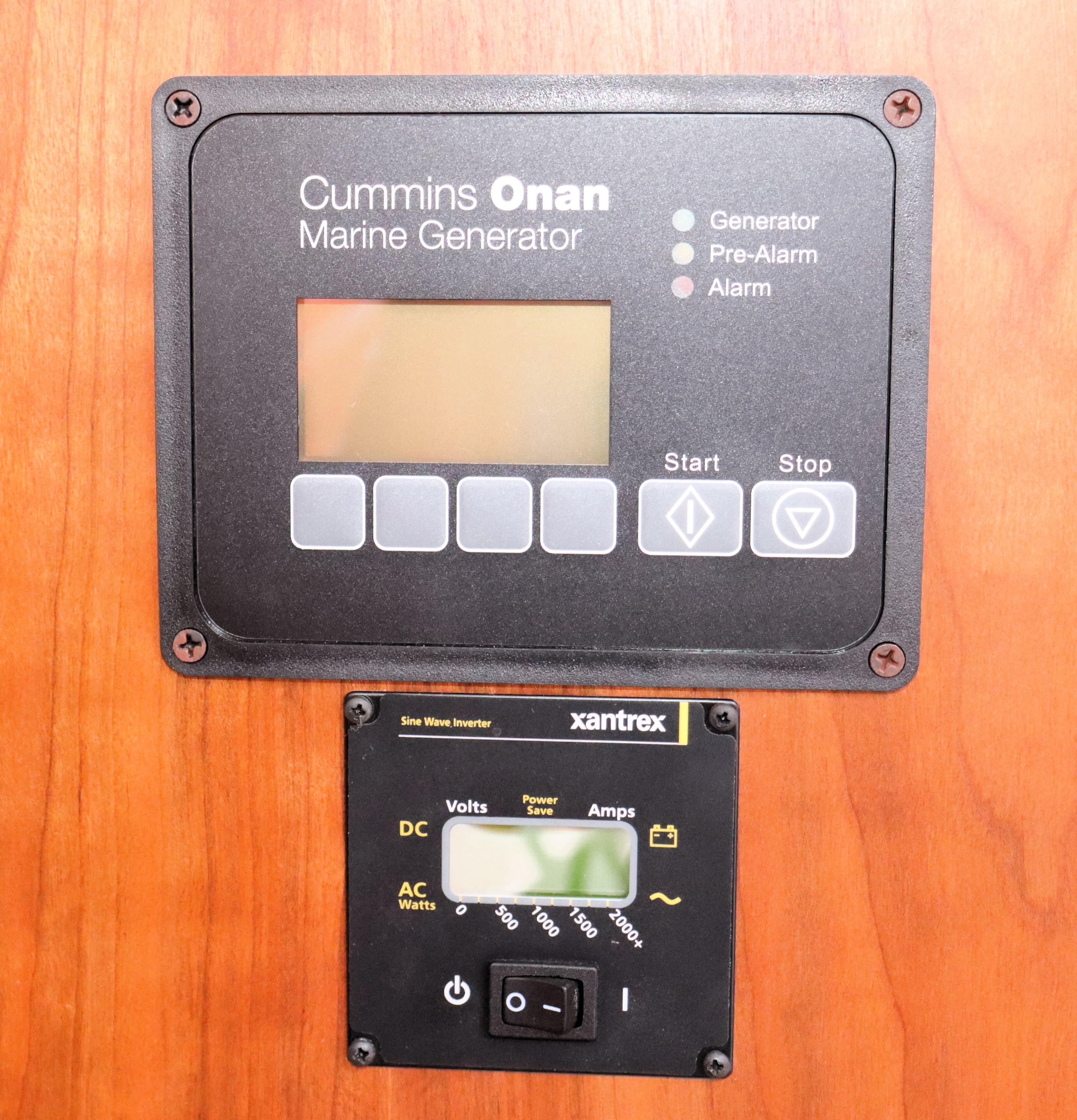

● 5 kW genset with sound shield and water/exhaust separator

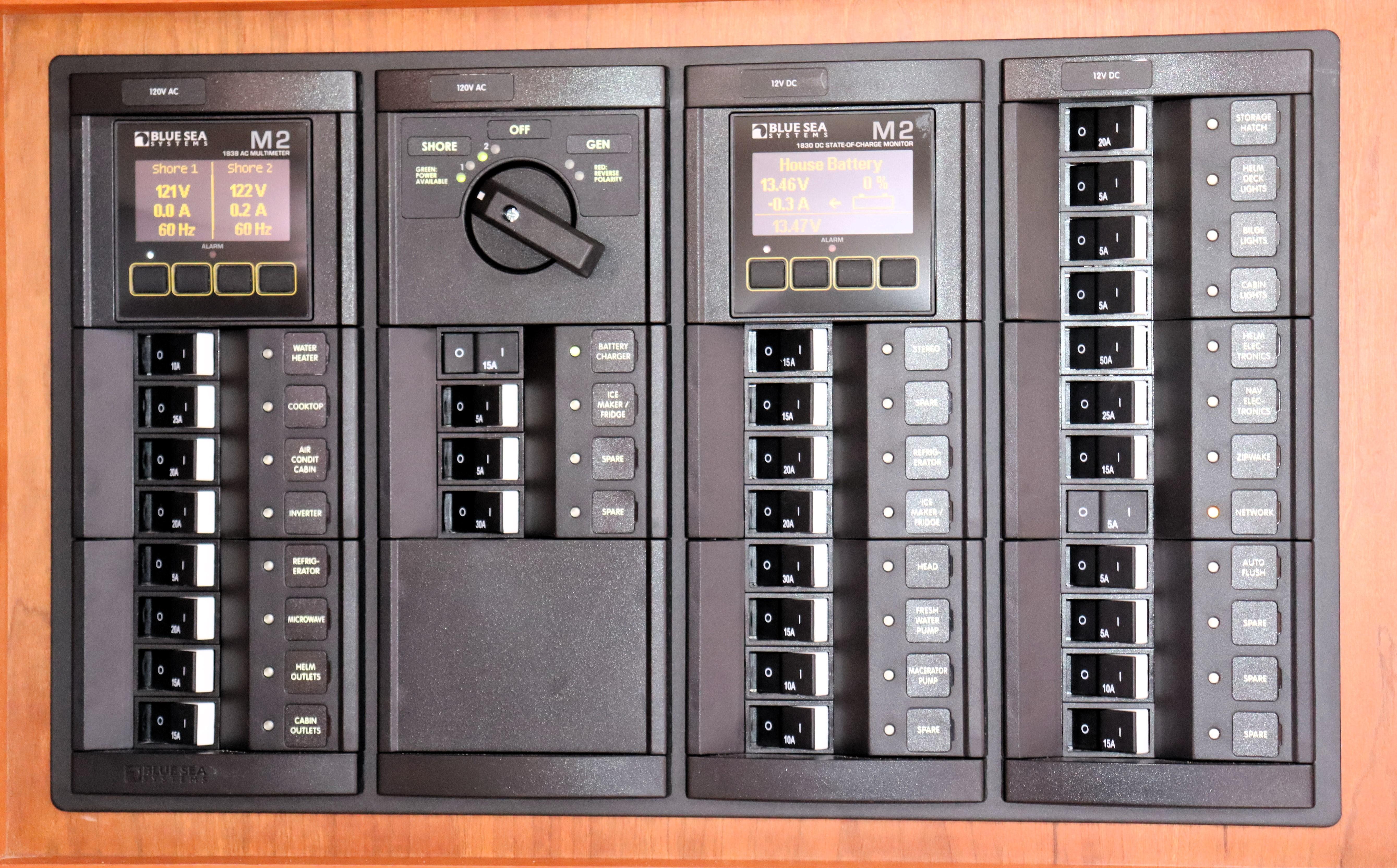

● AC/DC control panel with polarity indicator

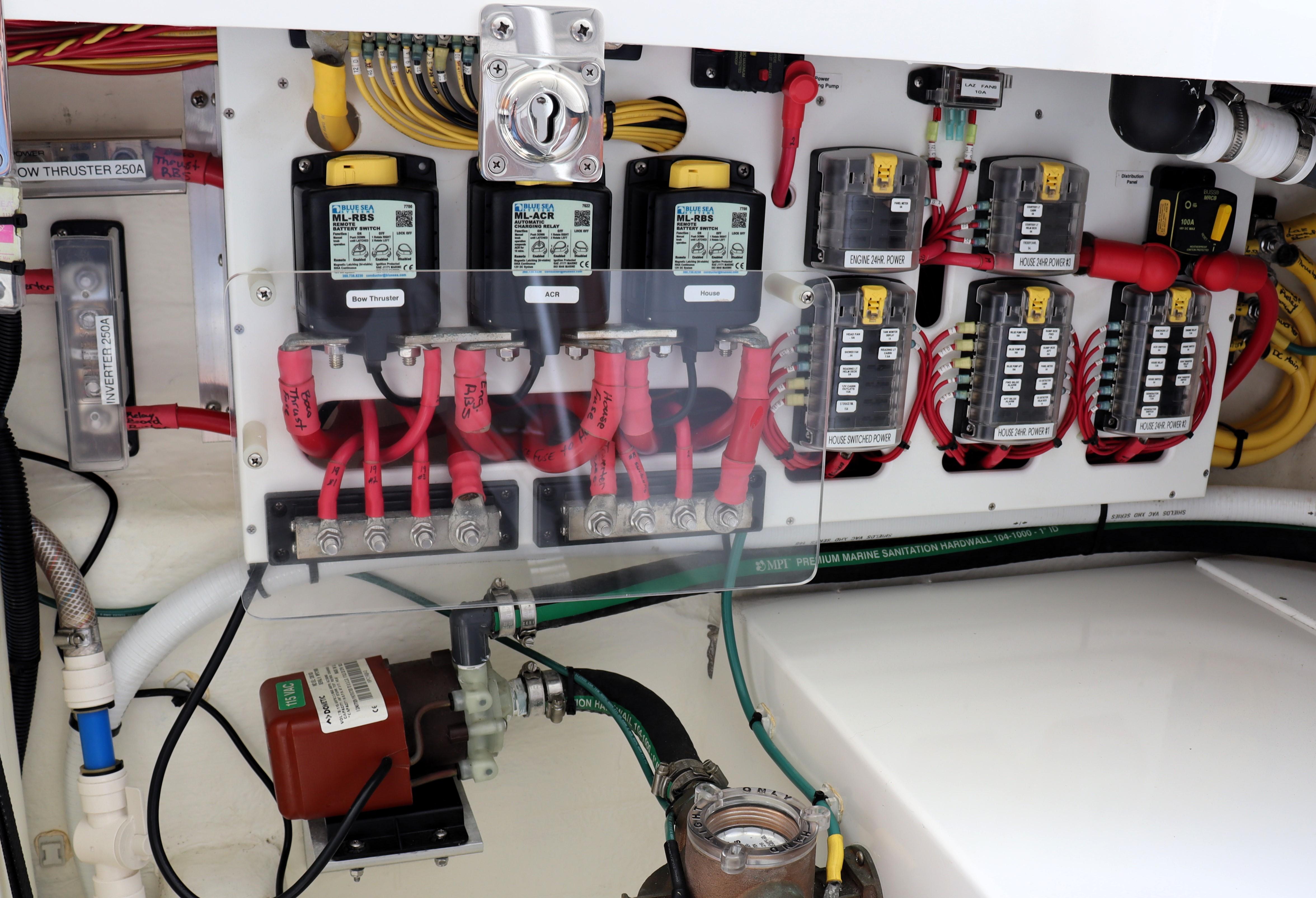

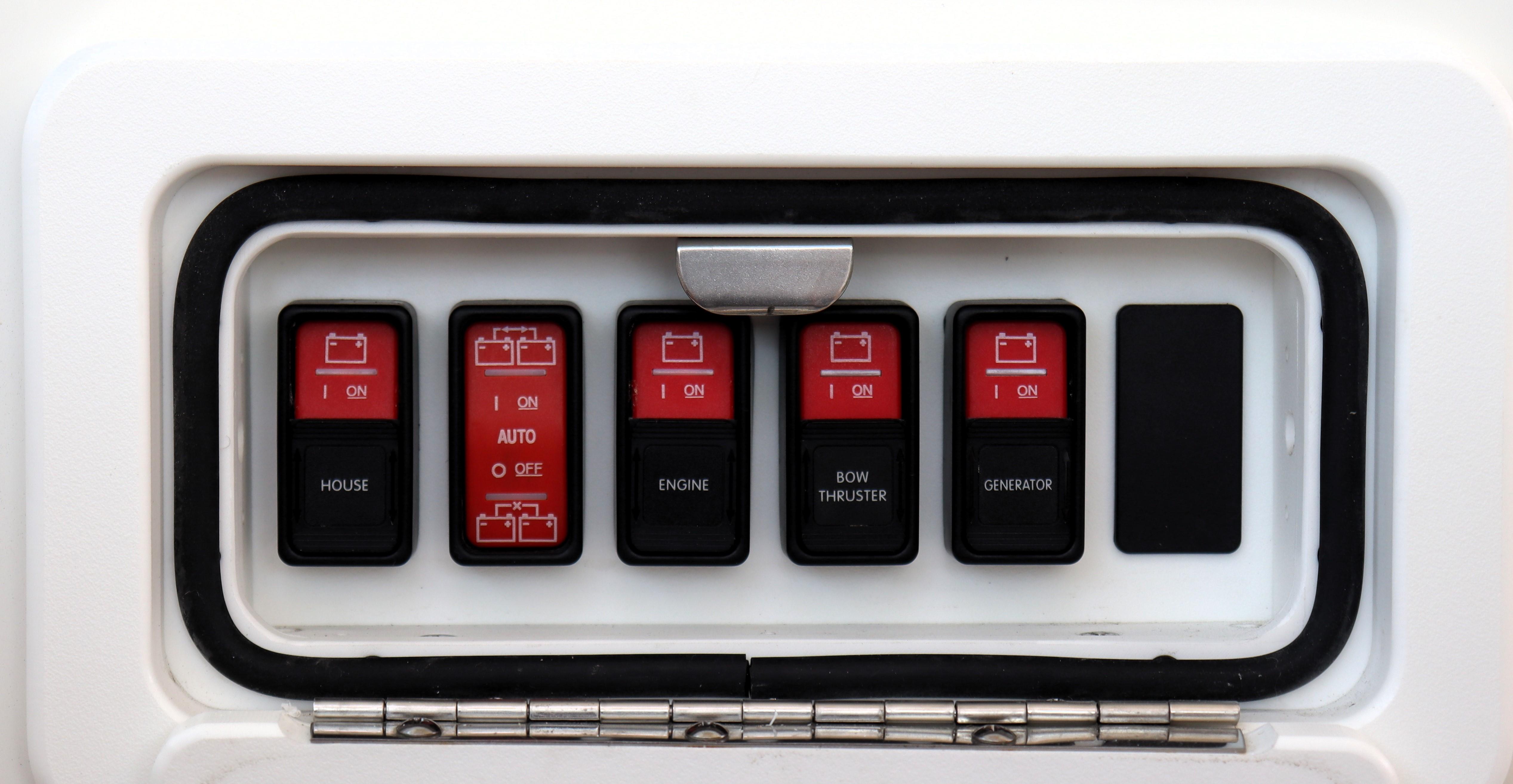

● 12Vdc system battery management switching

● 12Vdc breaker for electronics

● Emergency engine battery cross-over switch (manual)

● (2) 120Vac 30 amp shore power inlets w/ 50 foot cords

● 120Vac shore power system ELCI protected

● Galvanic isolator

● GFI protected 120Vac outlets

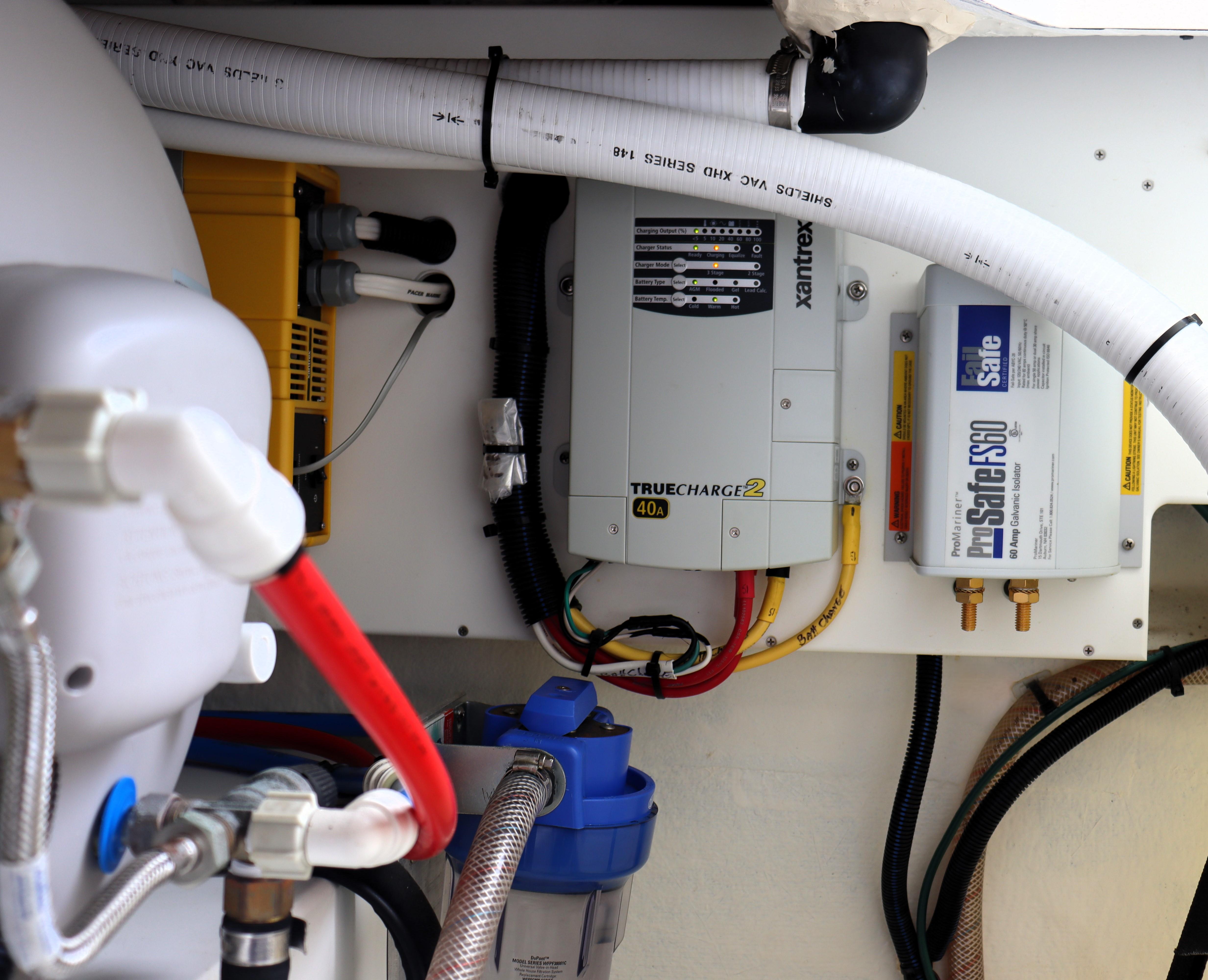

● Battery charger

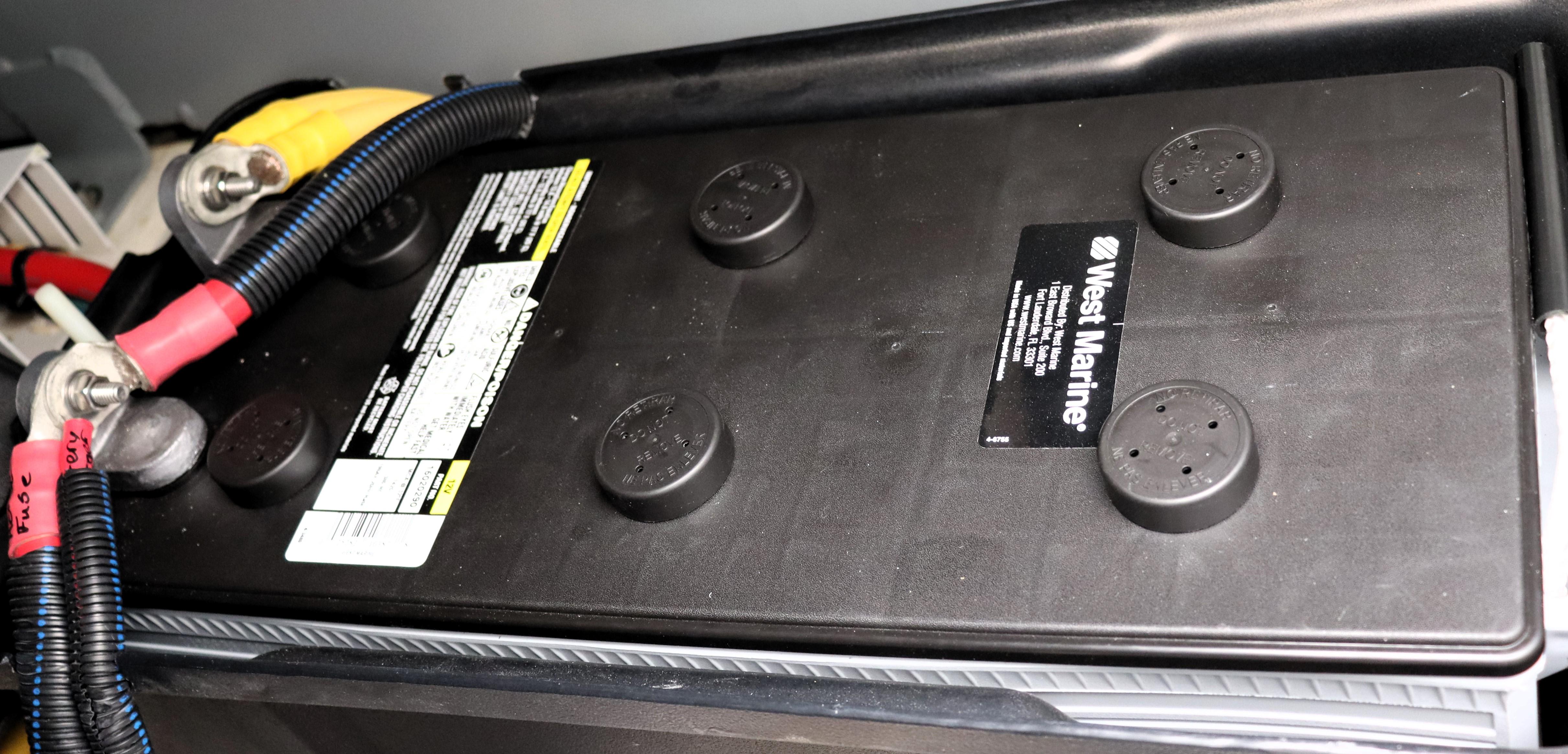

● (2) 4D AGM house battery wired parallel; (1) Group 27 AGM battery for

each engine; (1) battery for bow thruster/windlass

● Auto cross-over switch (ACR) for thruster/windlass and house bank

● (3) 12Vdc automatic bilge pumps and (2) bilge high water alarms

● Bonding system w/ zinc transom anode

● LED storage room and lazarette lighting

● Cockpit courtesy lights switched at transom door and helm

● Overhead LED cabin and salon lights (w/ dimmer control)

● Reading lights in salon and berth area

● Overhead bi-color LED helm deck light w/ switch

● 12Vdc outlet at helm and in cabin

● Battery powered salon and cabin smoke detectors

● Hard-wired CO detector in cabin and salon

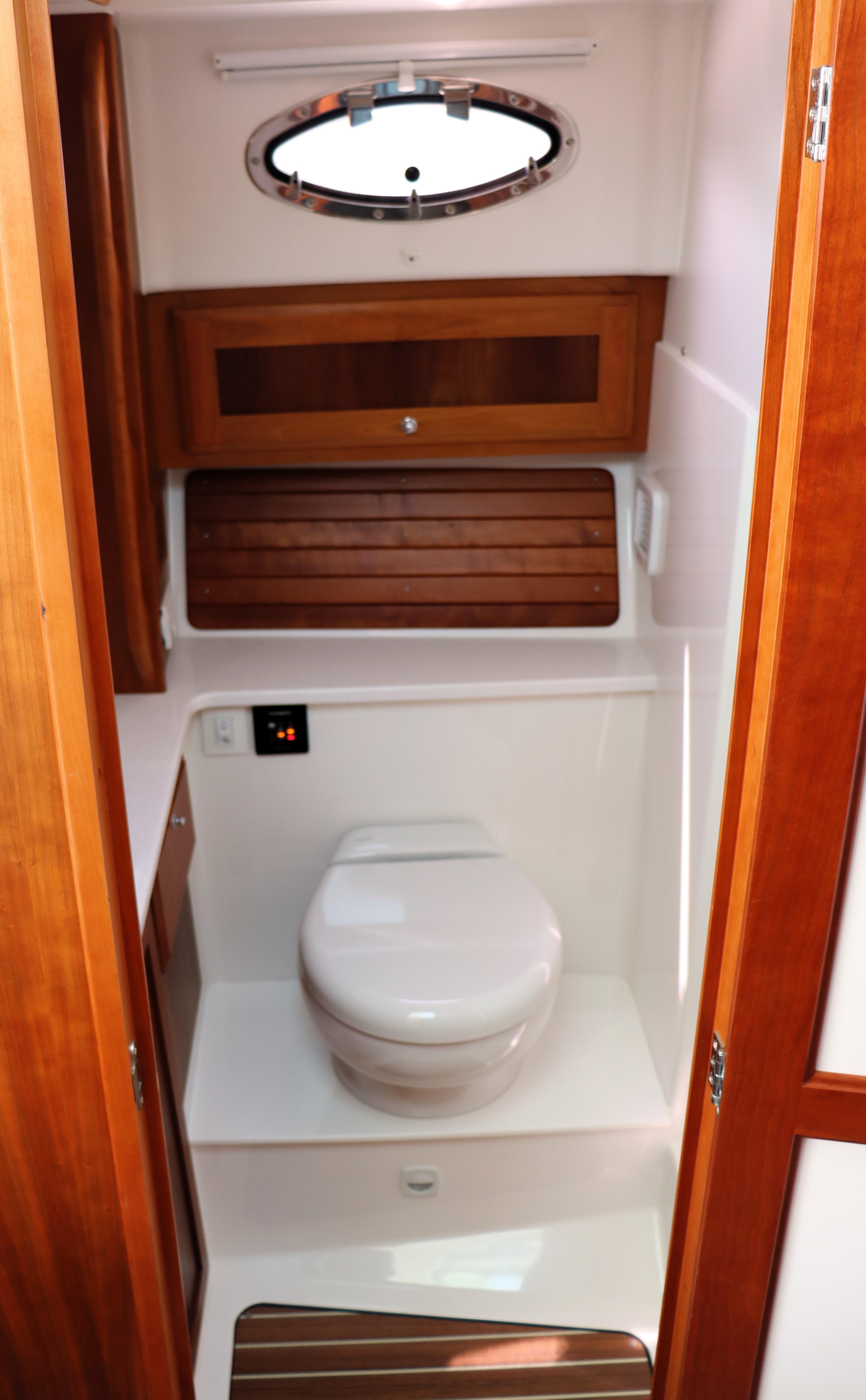

Head / Sanitary System

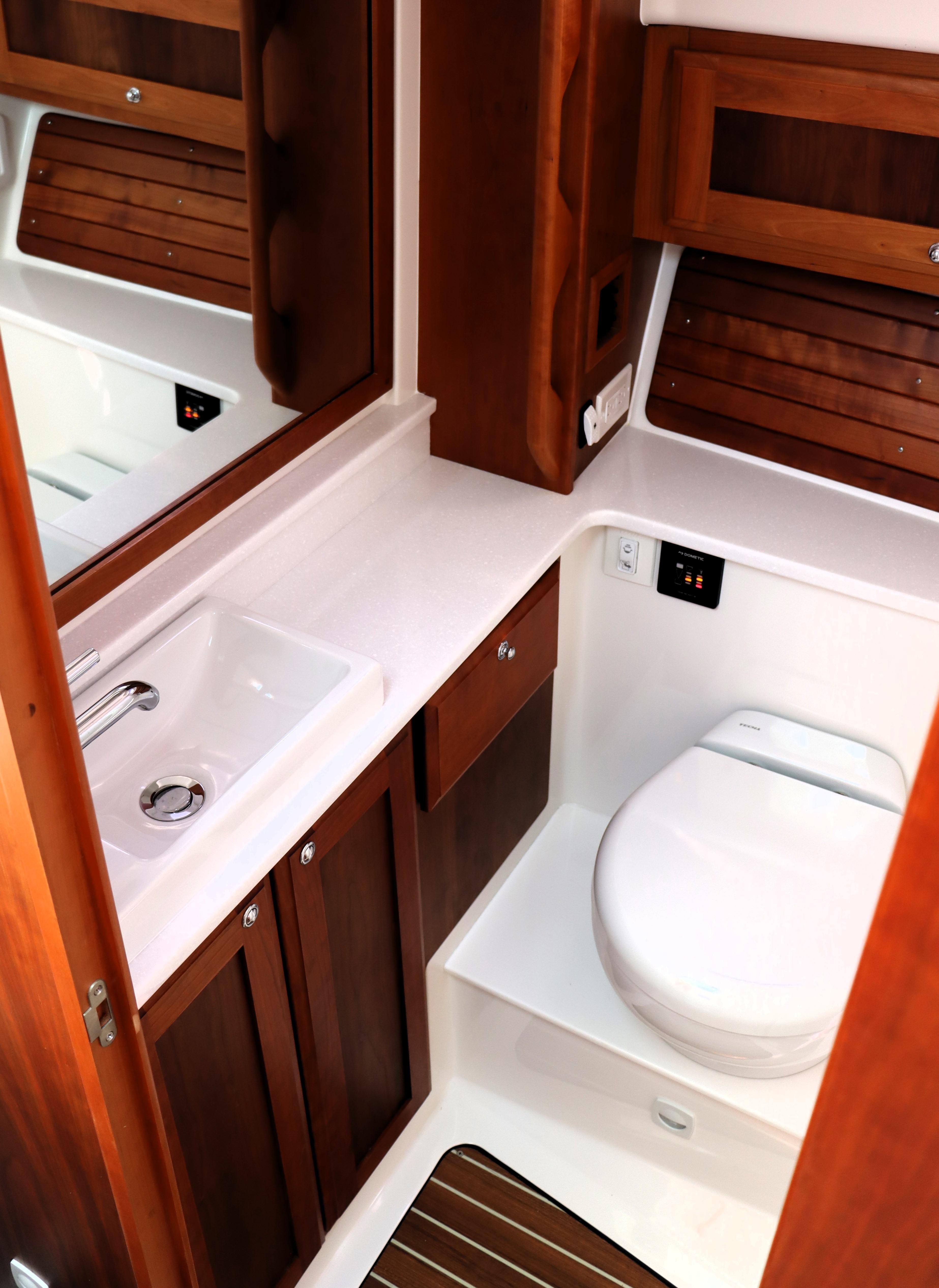

● Head to port w/ separate shower stall to starboard

● Molded seat in shower stall

● Built-in vanity w/ sink and storage

● Borrowed light in head with privacy glass

● Stainless steel opening ports w/ insect screen and shade

● Cherry framed mirror

● Solid surface countertop

● Single lever faucet

● Shower-drain sump pump system

● Fresh water electric MSD

● Macerator for holding tank overboard discharge (as permitted)

● Holding tank pump-out fitting on deck

● Sealed overhead LED lighting (w/ dimmer control)

● Powered exhaust fan in head and shower

● Waste and fresh water level gauge

● Removable woven floor mat

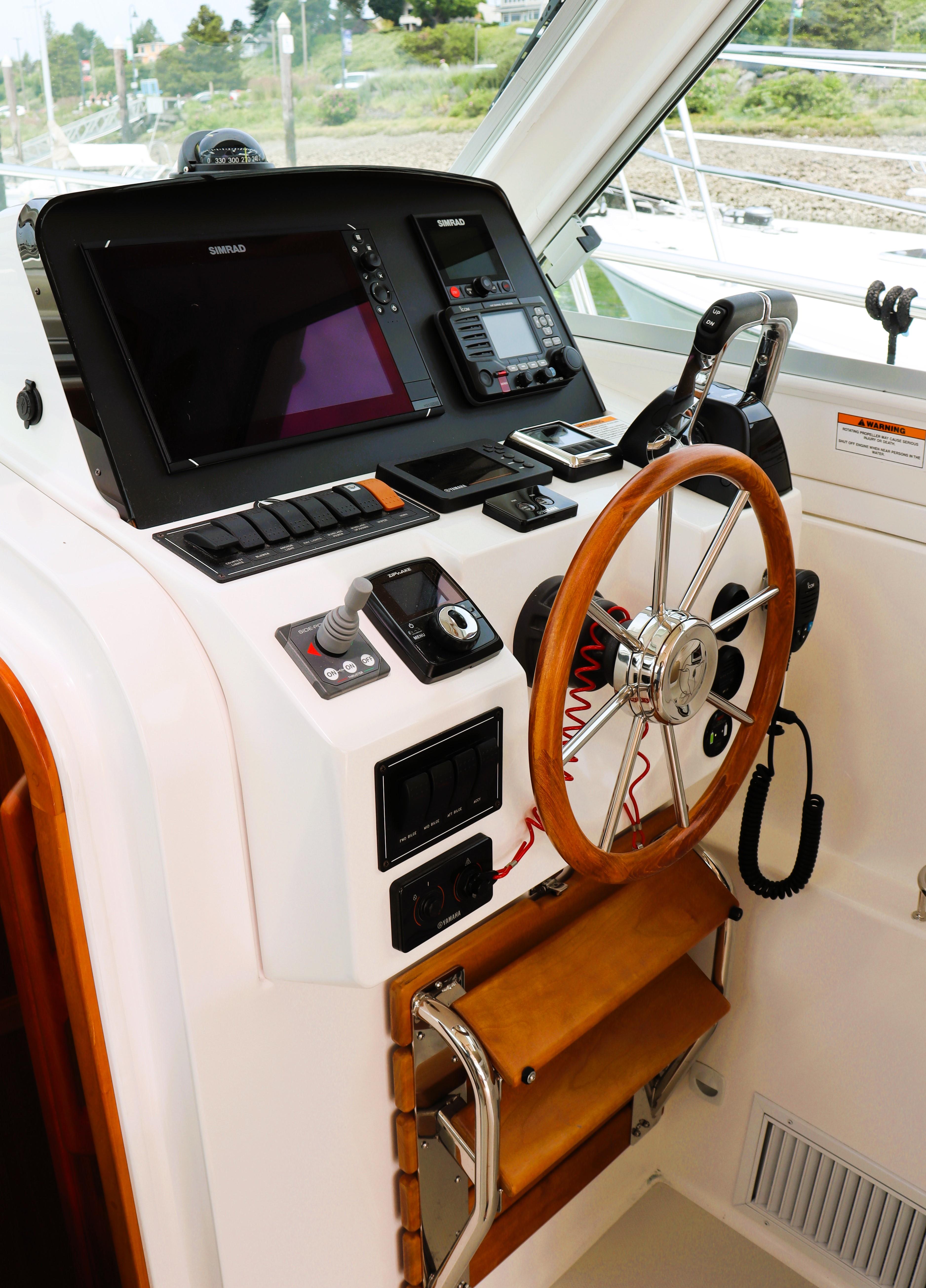

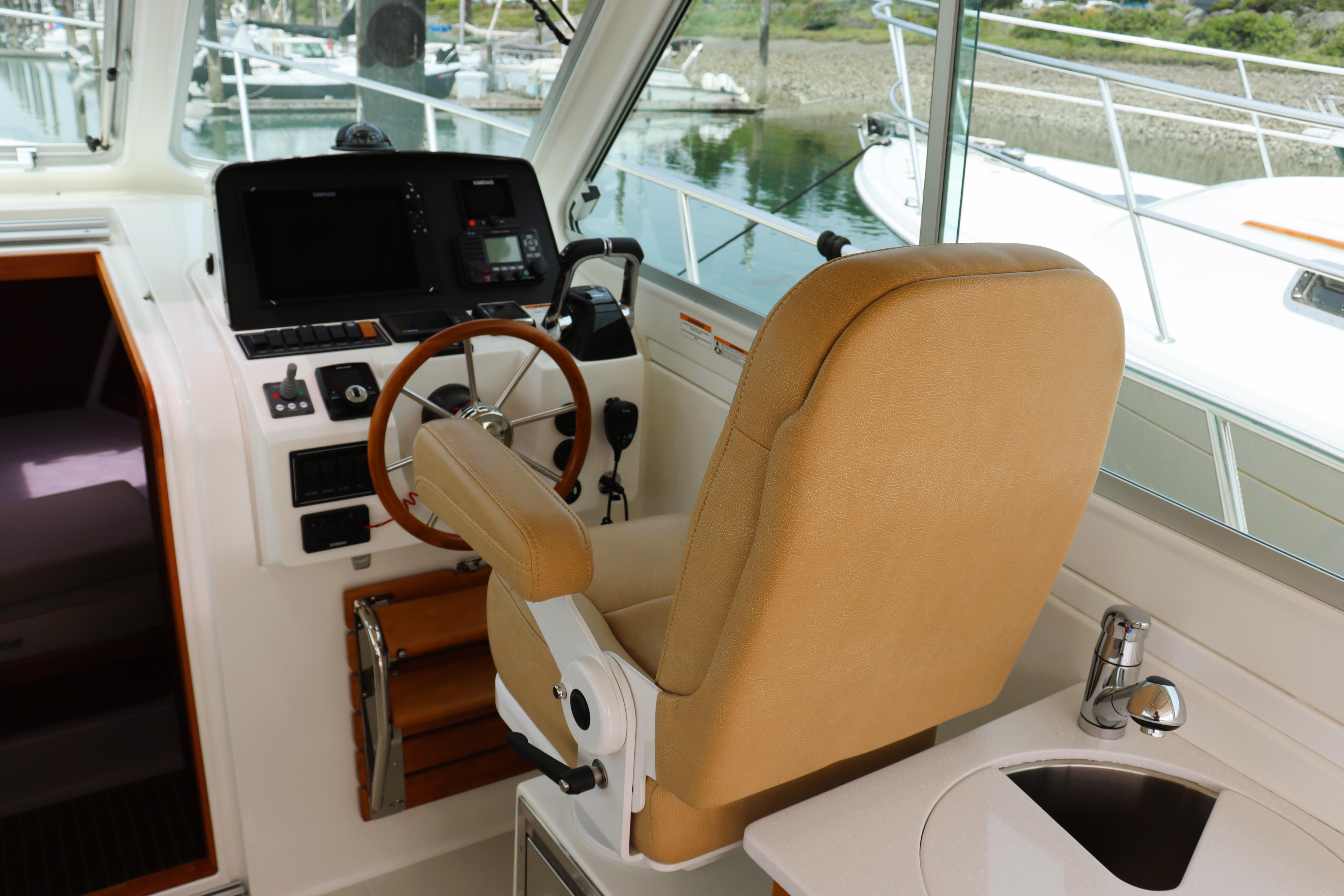

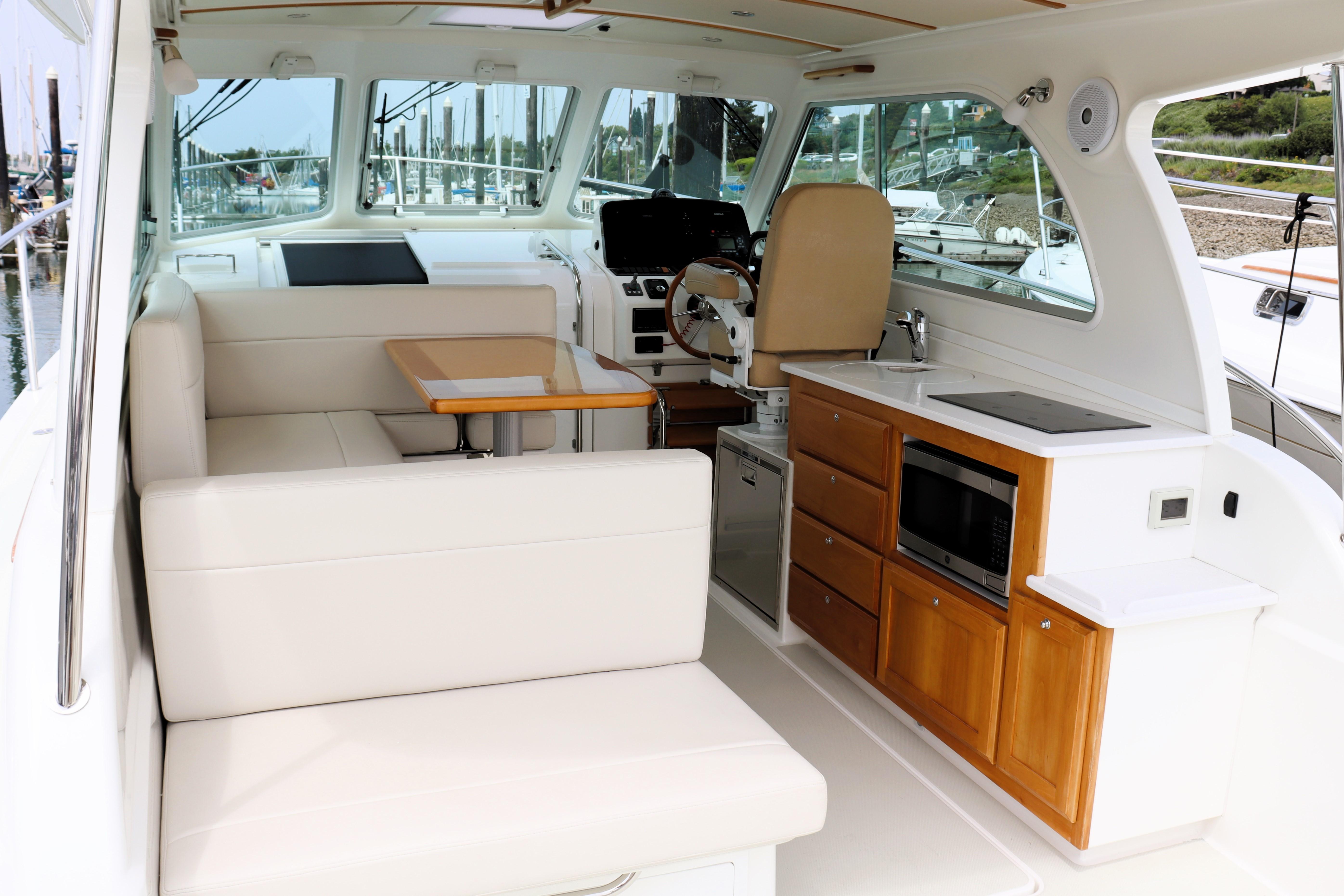

Helm Deck

● Frameless glass direct bond windows w/opening side windows

● Opening, framed center window

● (3) windshield wipers

● Compass, illuminated

● 16” wood grain steering wheel

● Ultra Leather helm seat

● Fixed, helm foot rest (folds down for helm step)

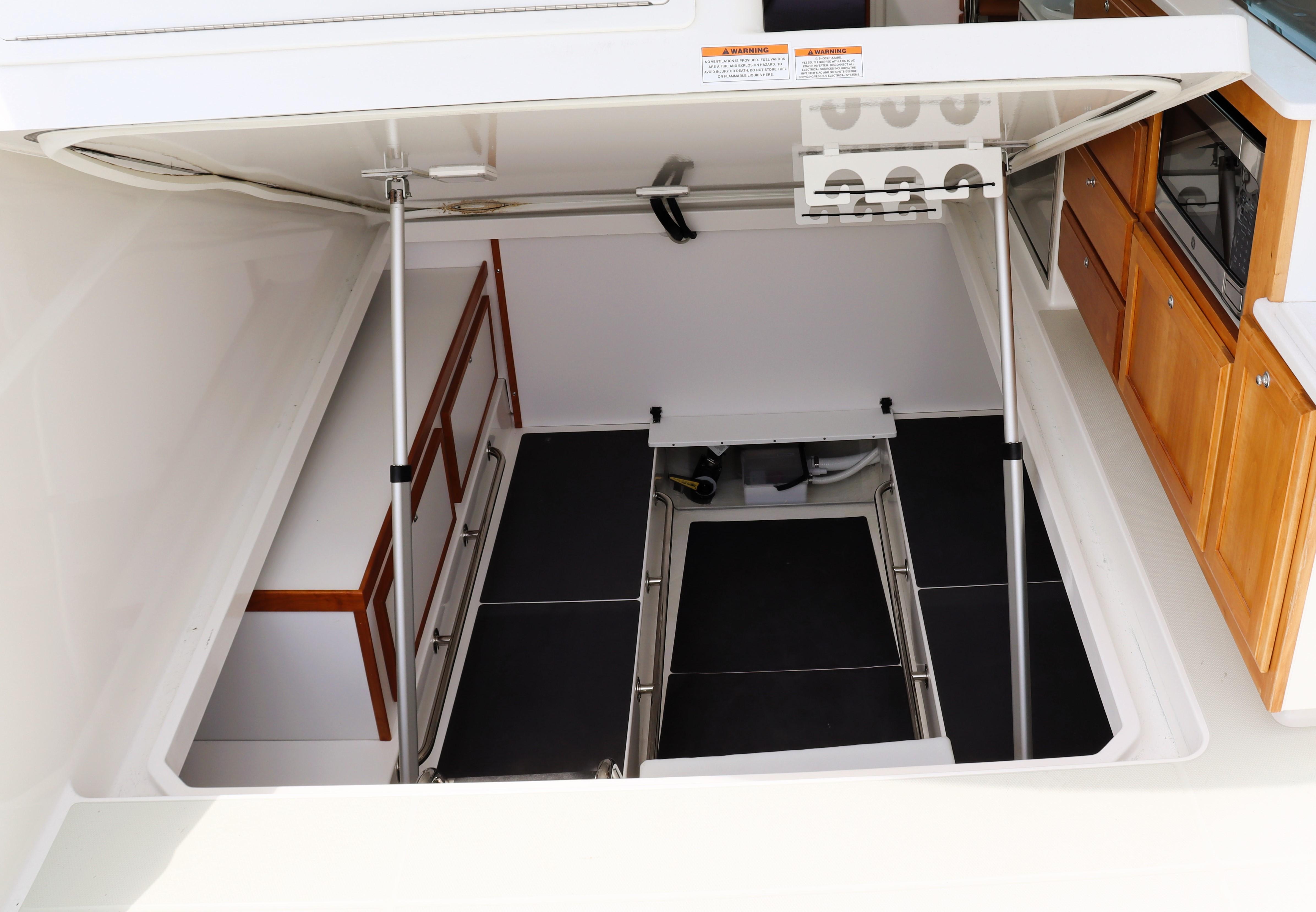

● Helm deck storage hatch opens by electrical linear actuators

● Stainless tie down rails in salon storage room

● 120 Vac outlet in salon storage room

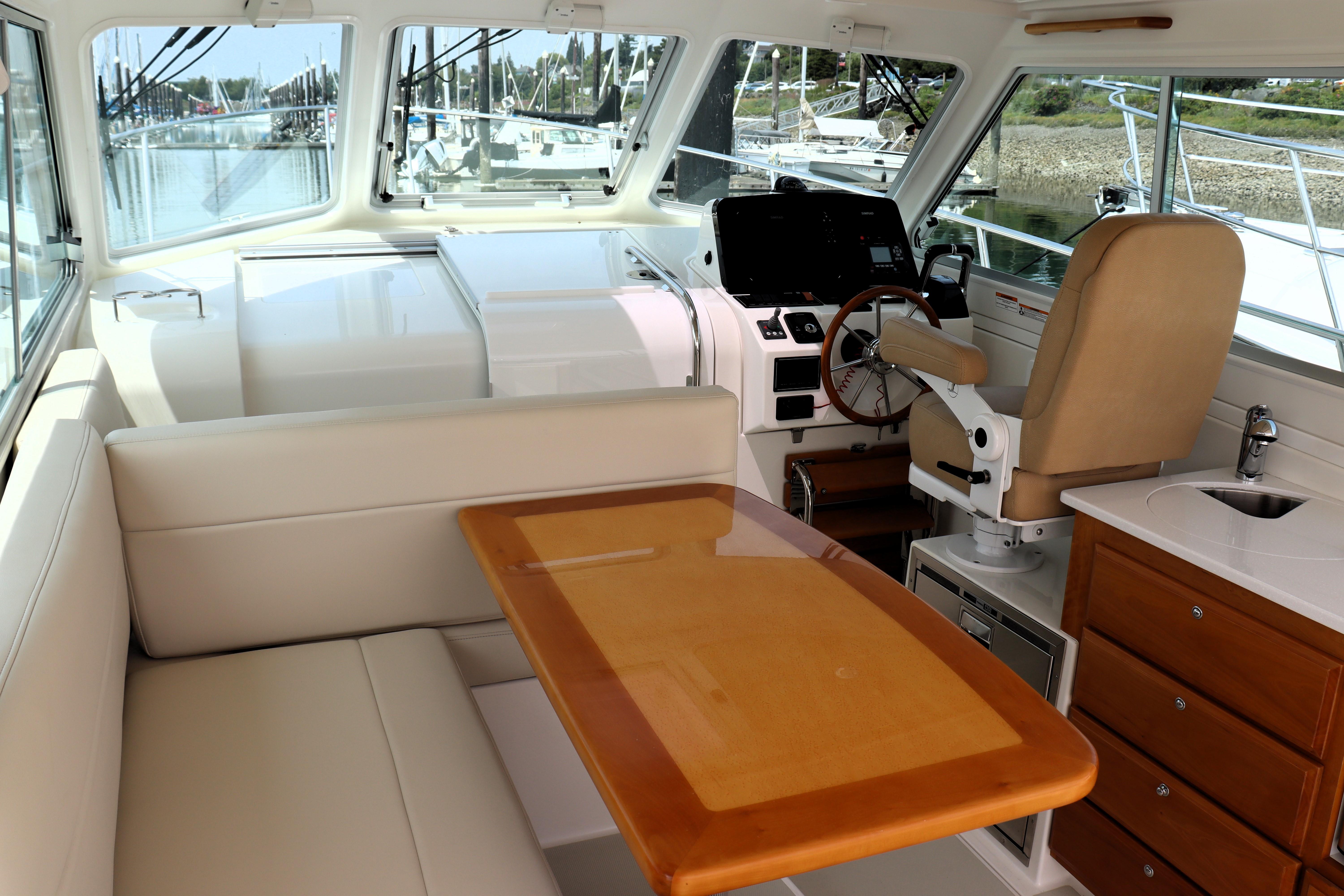

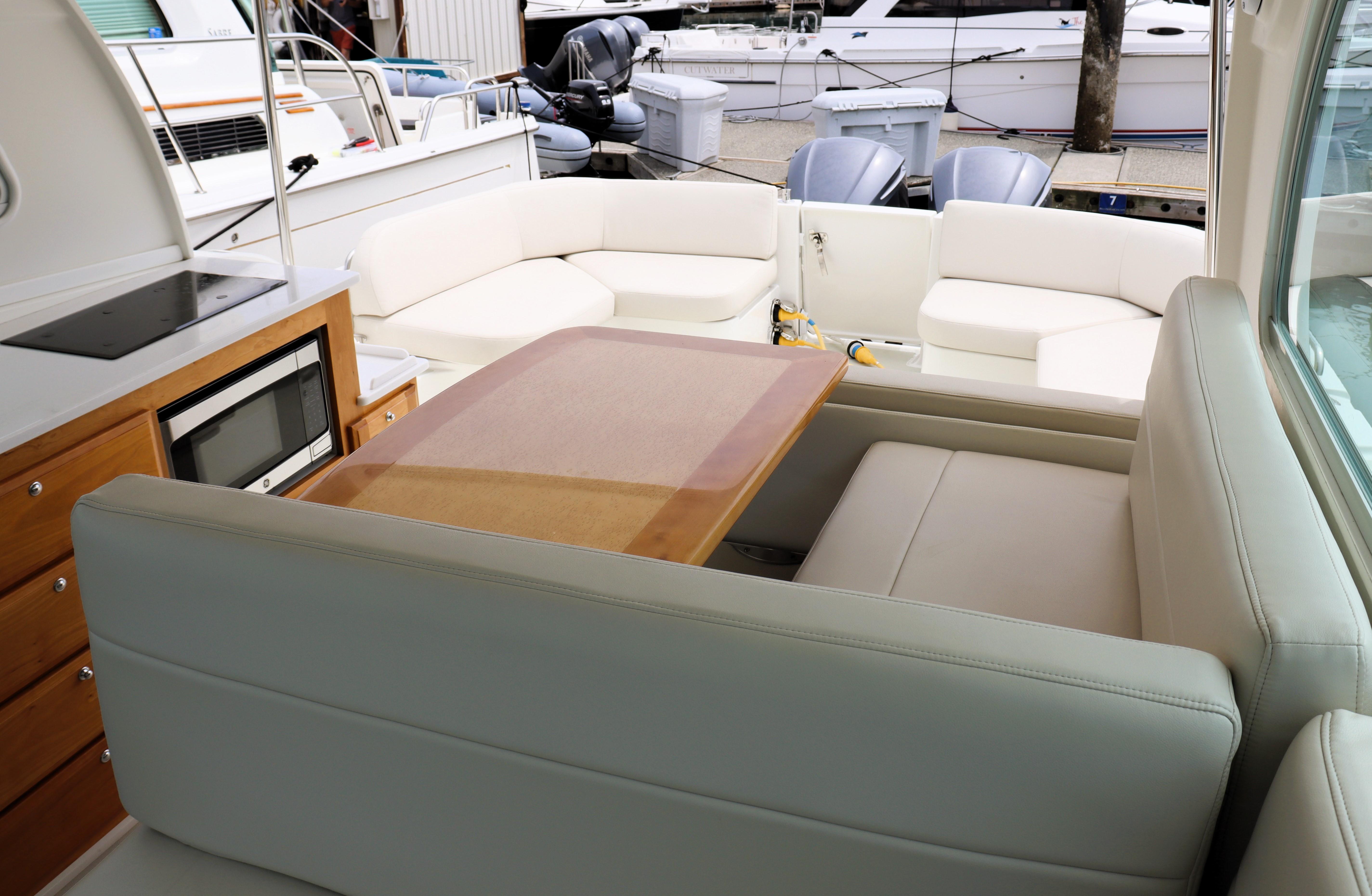

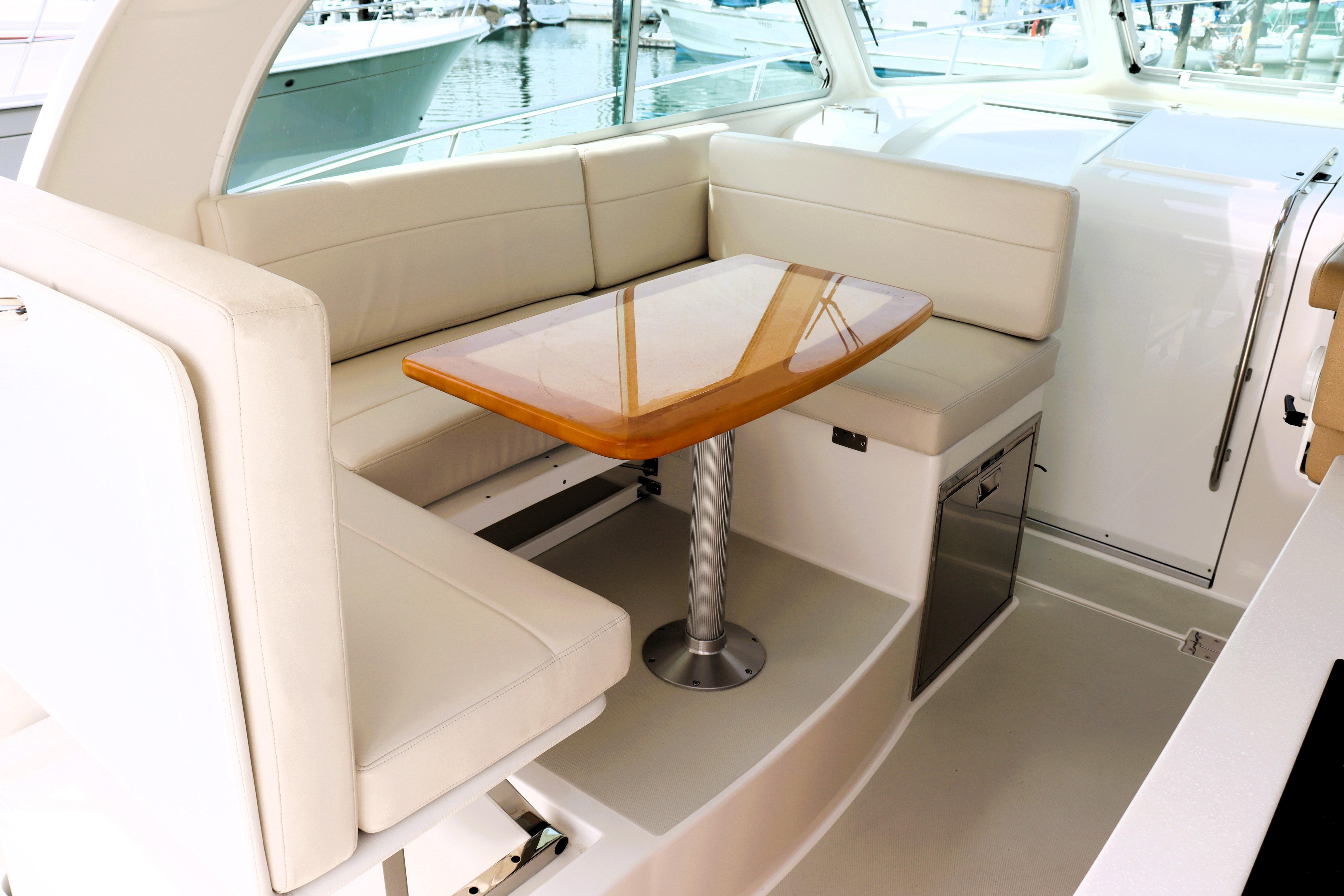

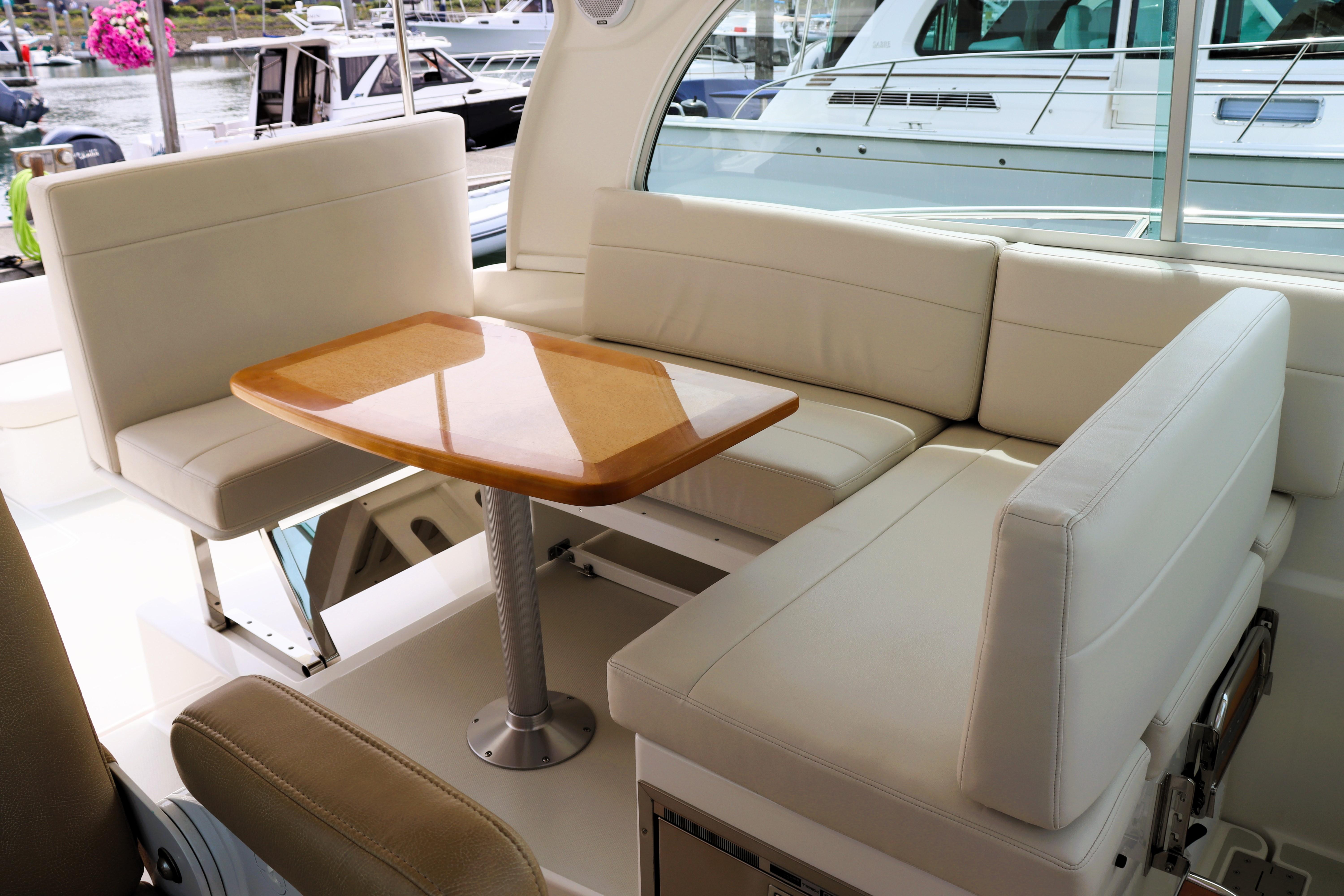

● Convertible dinette with Back Cove high gloss inlaid table

● Mates seat back converts for helm or settee positioning

● Aft dinette seat converts to face cockpit

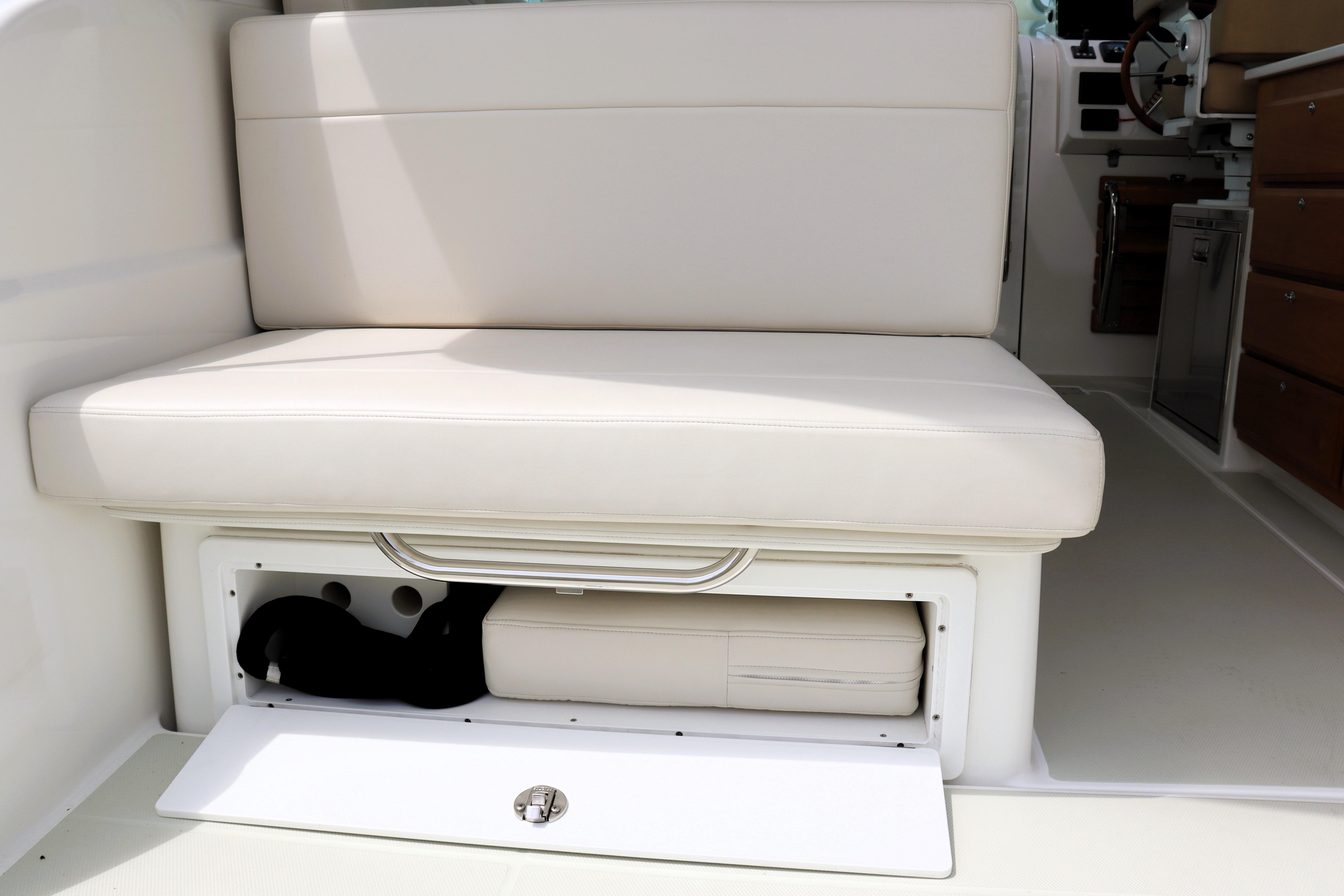

● Storage locker beneath dinette seating

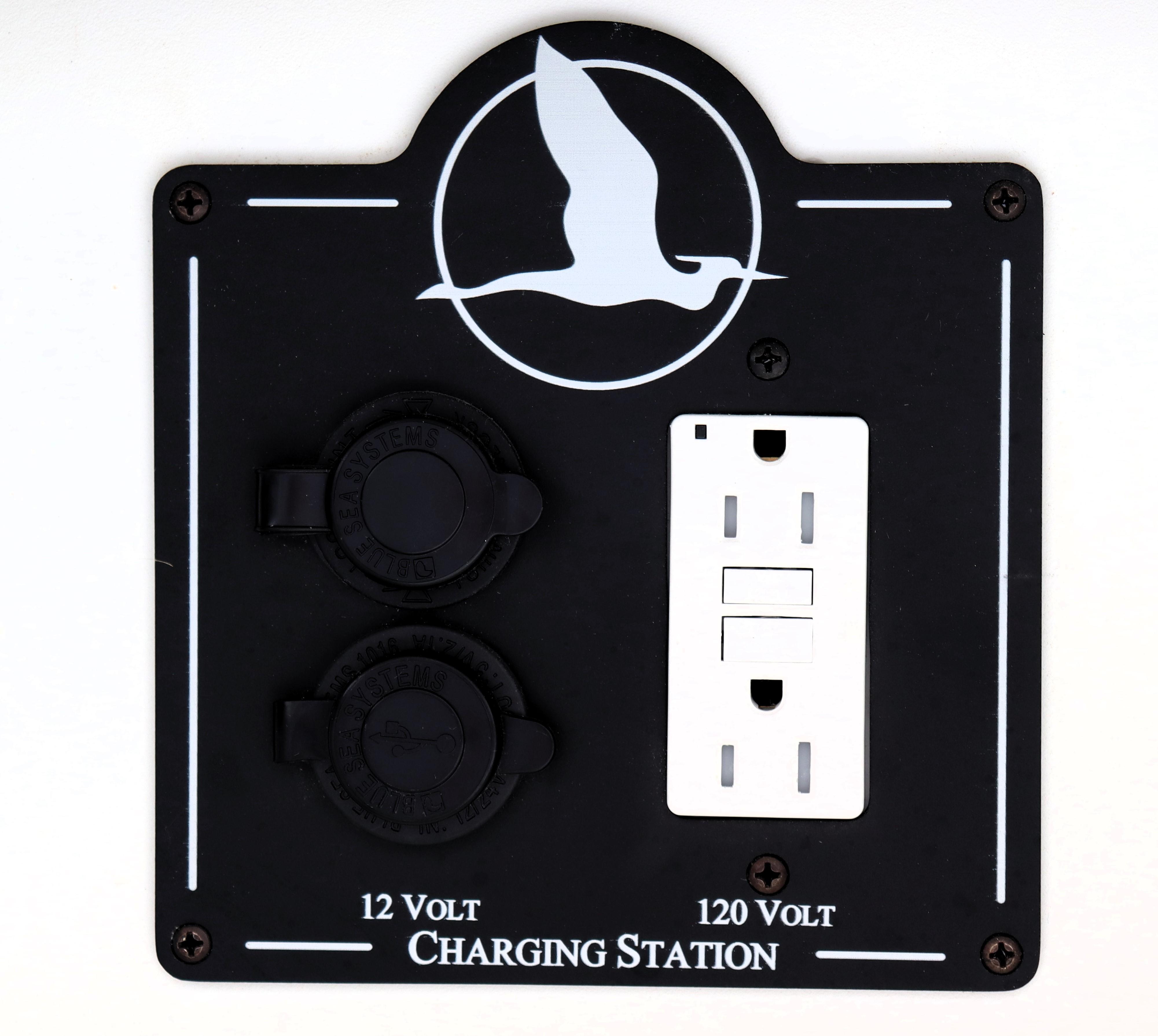

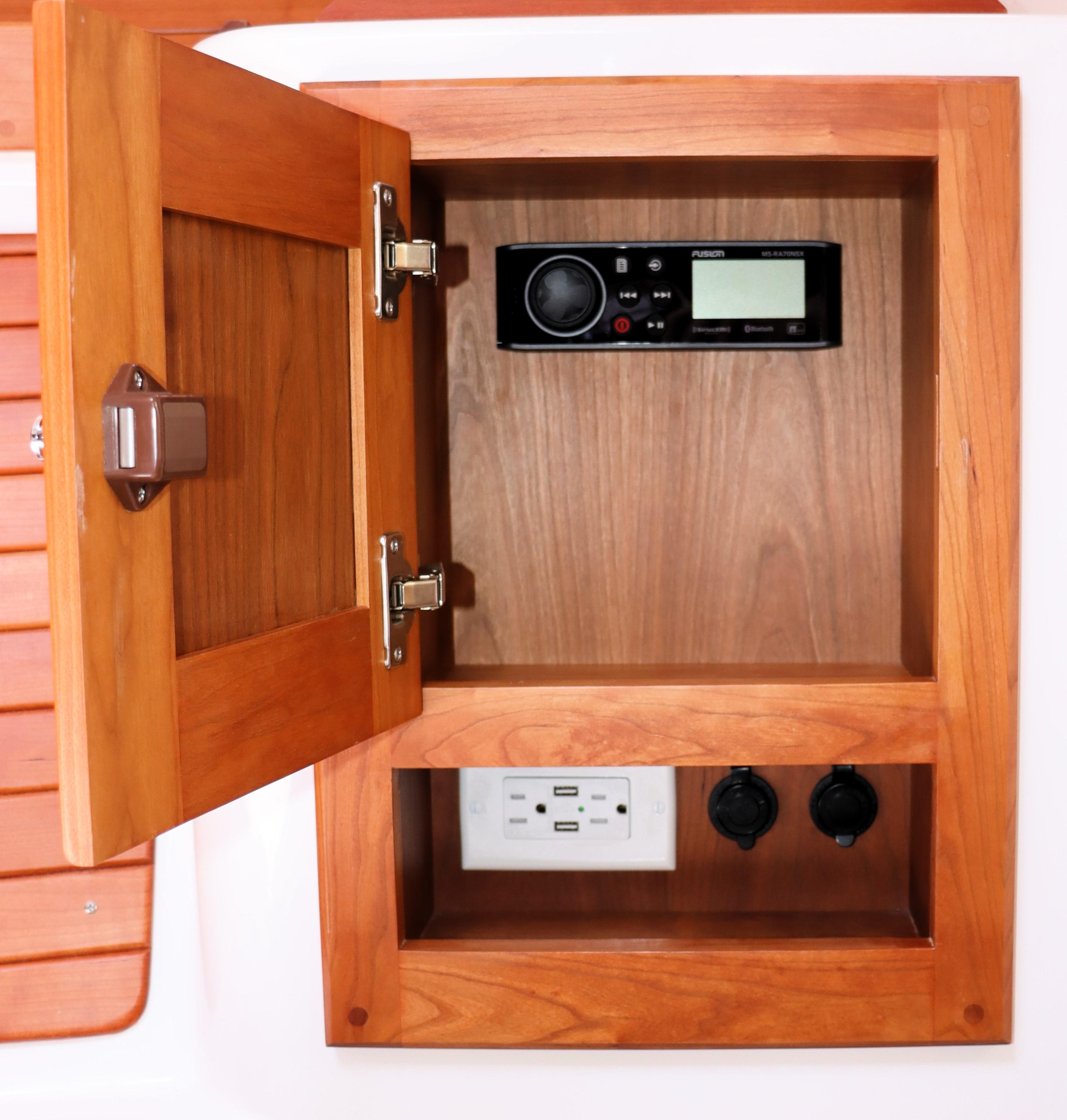

● Charging station (AC/DC/USB)

● 6.5 inch, 200 Watt Fusion speakers
