Included Options

Options

- Seakeeper Stabilizer NG6

- Audio / video package with decoders and sat antenna

- Tracvision tv3 usa

- Painted hull, gunwhale and hardtop

- Raymarine platinum package

- Estech on cockpit, aft swim platform, swim platform and side beach platform and wheelhouse

- Advance package

- Bow thruster

- Mercury maneuvering package

- Electric awning in cockpit

- Painted motors cowlings

- 40" tv in cockpit w/ hi-lo mechanism

- Full monitoring system

- Luxury exterior lighting package

- Electric hi-lo cockpit table (deck flush)

- BBQ in cockpit furniture

- Sun shade sail on bow w/ removable carbon fiber poles

- Electrically operated porthole on htop

- Sofa bed in dinette w/ hi-lo table

- Wooden floor in dinette and galley

- Removable table on bow in carbon fiber finishing

- Painted boot stripe for painted hull

- Cooktop in cockpit furniture

- Sunbathing cushions on bow w/ foldable backrest in upgraded Spradling fabric

- Winecooler

- N.2 underwater lights on sides (1 per side)

- 2 underwater lights on transom

- Interiors and exteriors dimmered lights

- Storage predisposition for seabob and inflatable

- Set of cutlery, crockery and glasses

- Set of linen for cabins

- Stainless steel anchor

- Safe in master cabin

- Set of towels (one person)

- Toilet w/ bidet faucet feature

- Stern sofa cover

- Bow sunbathing and setee cushions covers

- Appliances upgrade

- Chaincounter in main helm

- Peace of mind warranty

- Extra conduits

- Backrest in upgraded spradling fabric

- Predisposition for watermaker

- Mercury skyhook system

- Mercury maneuvering joystick w/ dedicated extra gps antenna

- Automatic outboard flushing system

- Decor upgrade

- Windshield cover

- Pilot seat and dashboard covers

- Outboard flushing system

Standard Features

Exterior

Hard Top

Carbon fiber Hard Top equipped with:

- Lights mast

- Compliant navigation lights

- Electric adjustable spot with remote control (for USA version)

- Portlight with manual opening system

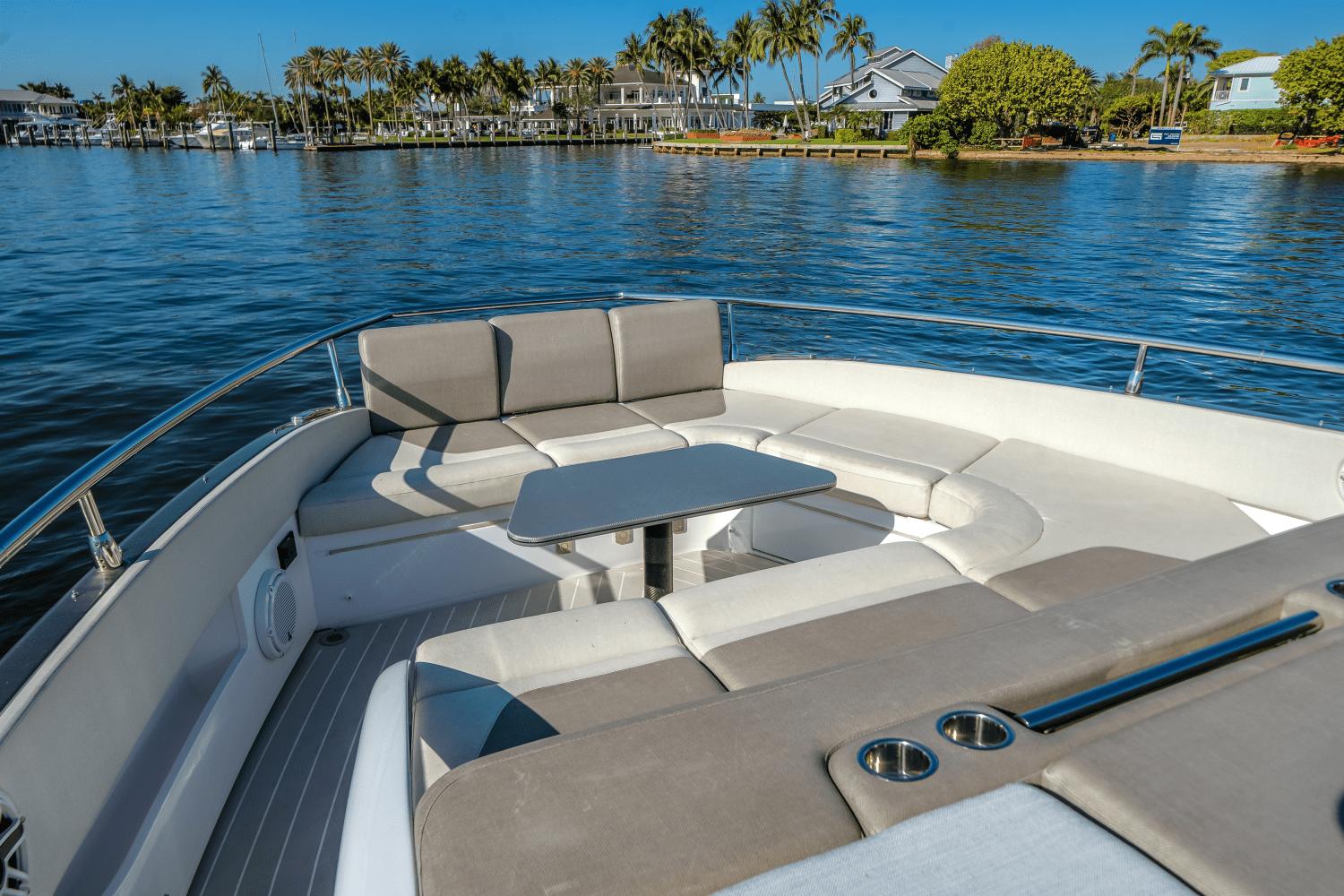

Bow

- Chain locker provided with drainage, accessible through hatch

- Remote control for fore winch

- Stainless steel anchor line anti-rubbing protection

- Hatch (emergency exit from master cabin)

- Sunbed area with built-in glass holders

- Grabrails on sunbed area sides

- C-shaped seating area at the bow

- Fridge

- Scuppers

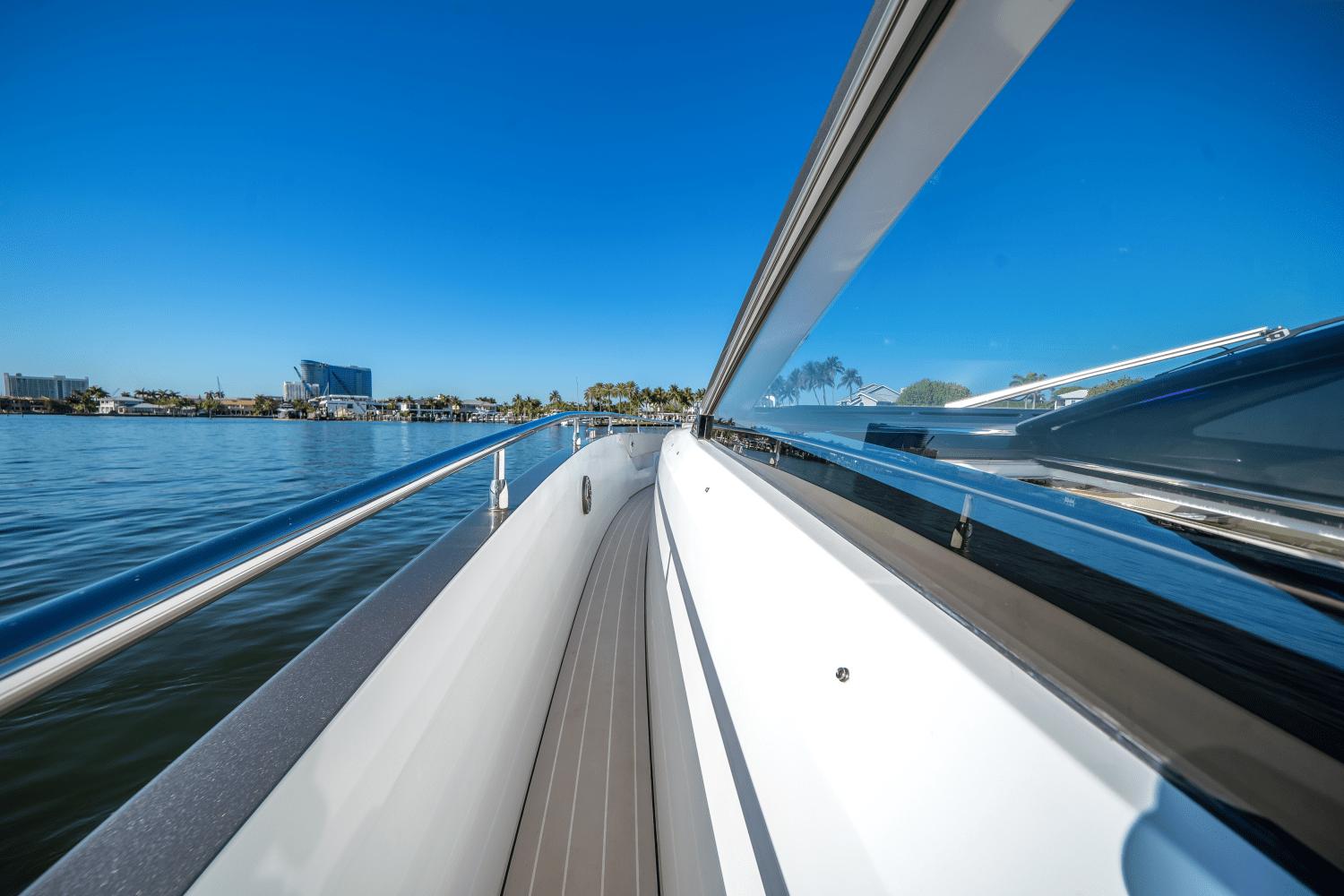

Walk Arounds

- Access to port walk around from the cockpit

- Access to starboard walk around from the wheelhouse

- Rubber rub-rail with stainless steel insert

- Stainless steel pulpit with handrail

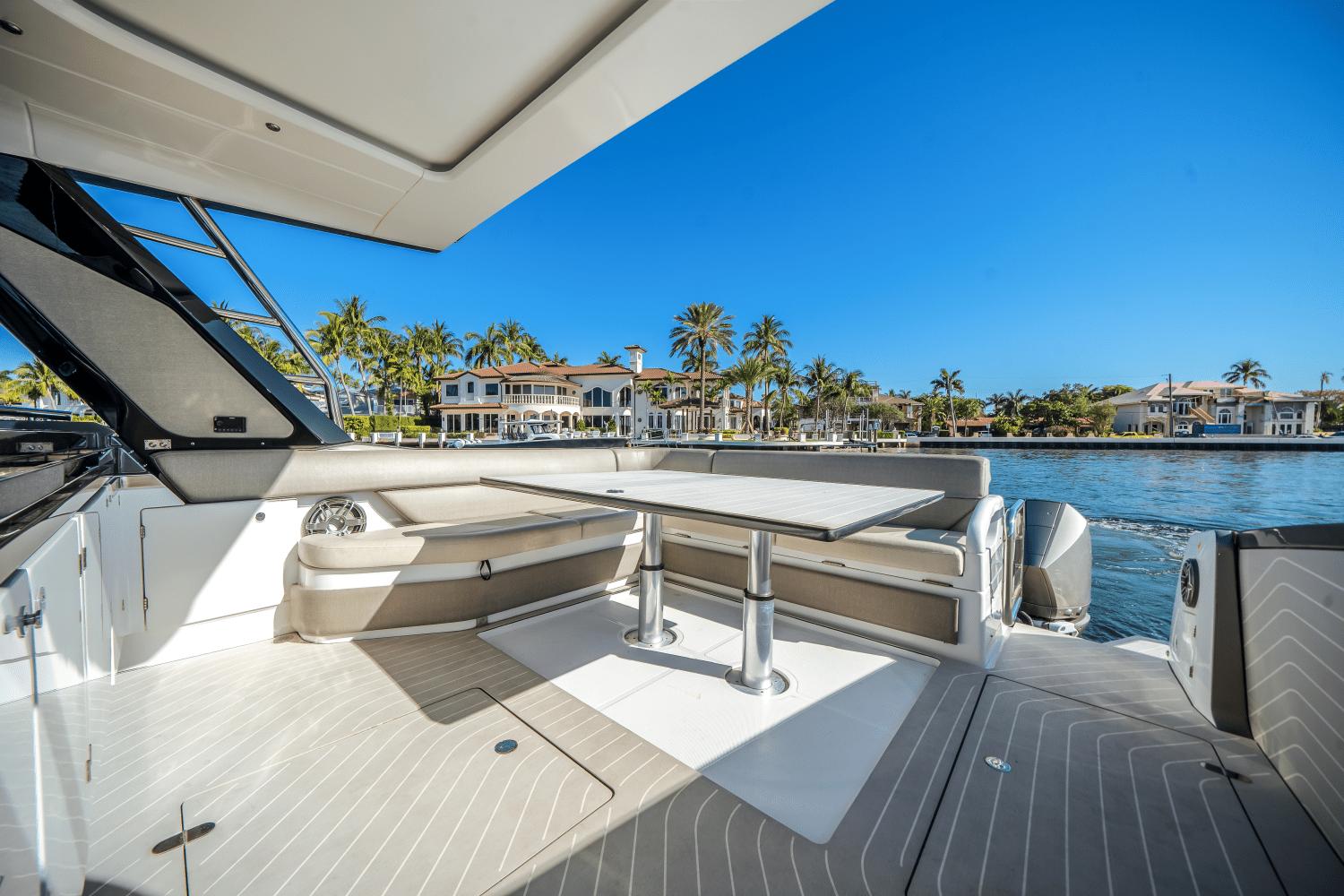

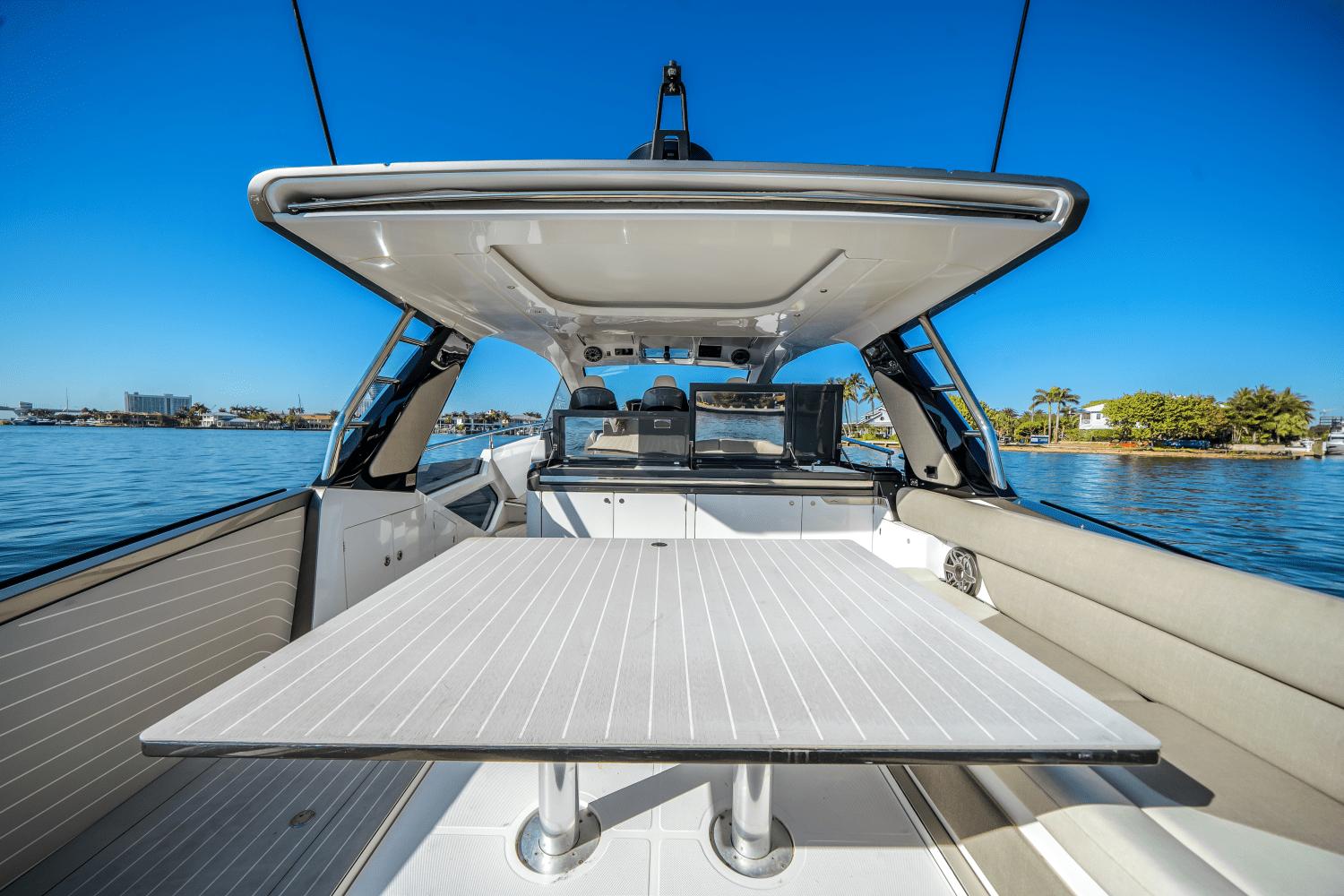

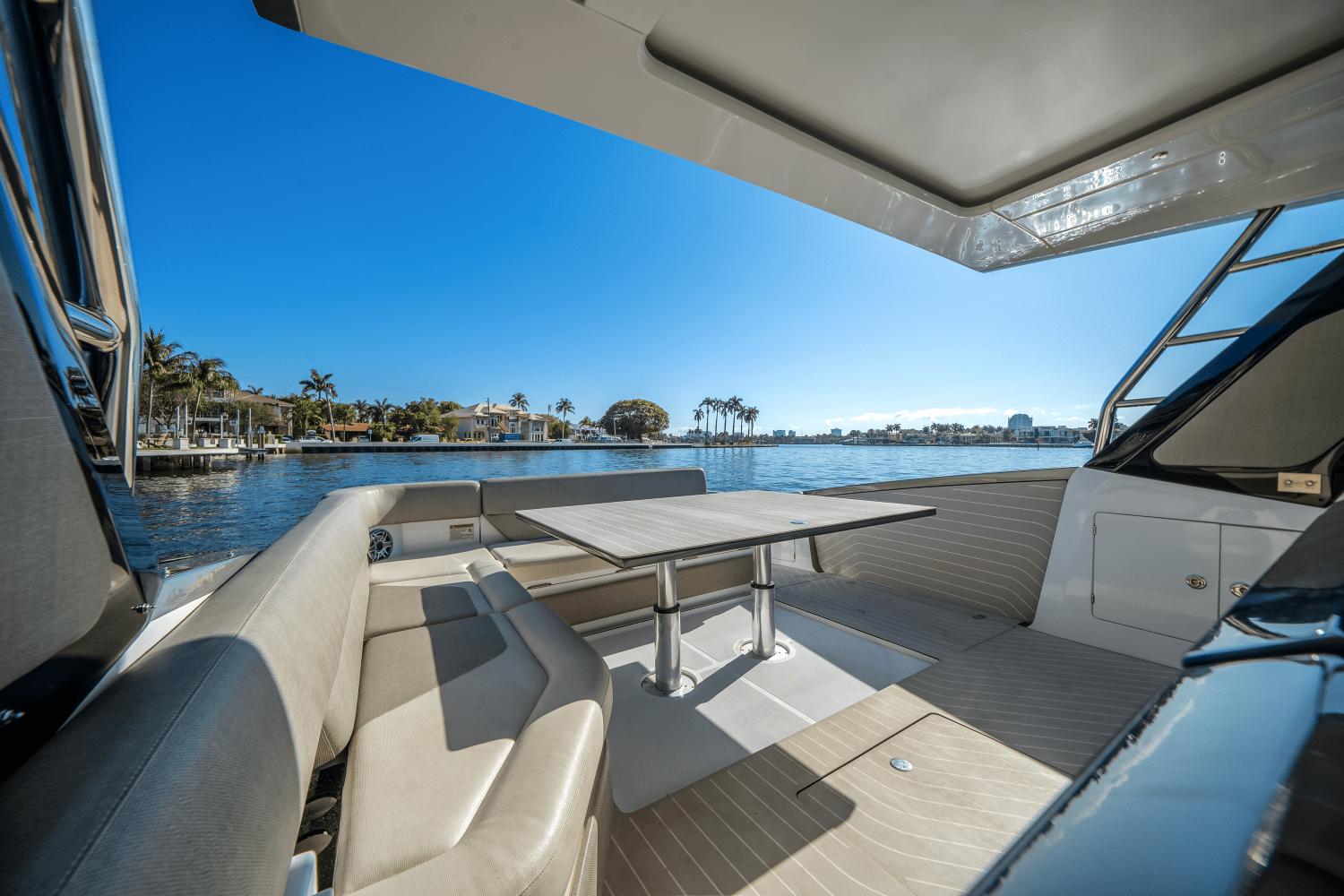

Cockpit

-One access on port side through stainless steel gate

- Port side platform with electric control

- Manual pull-out swimming ladder, located inside the side platform

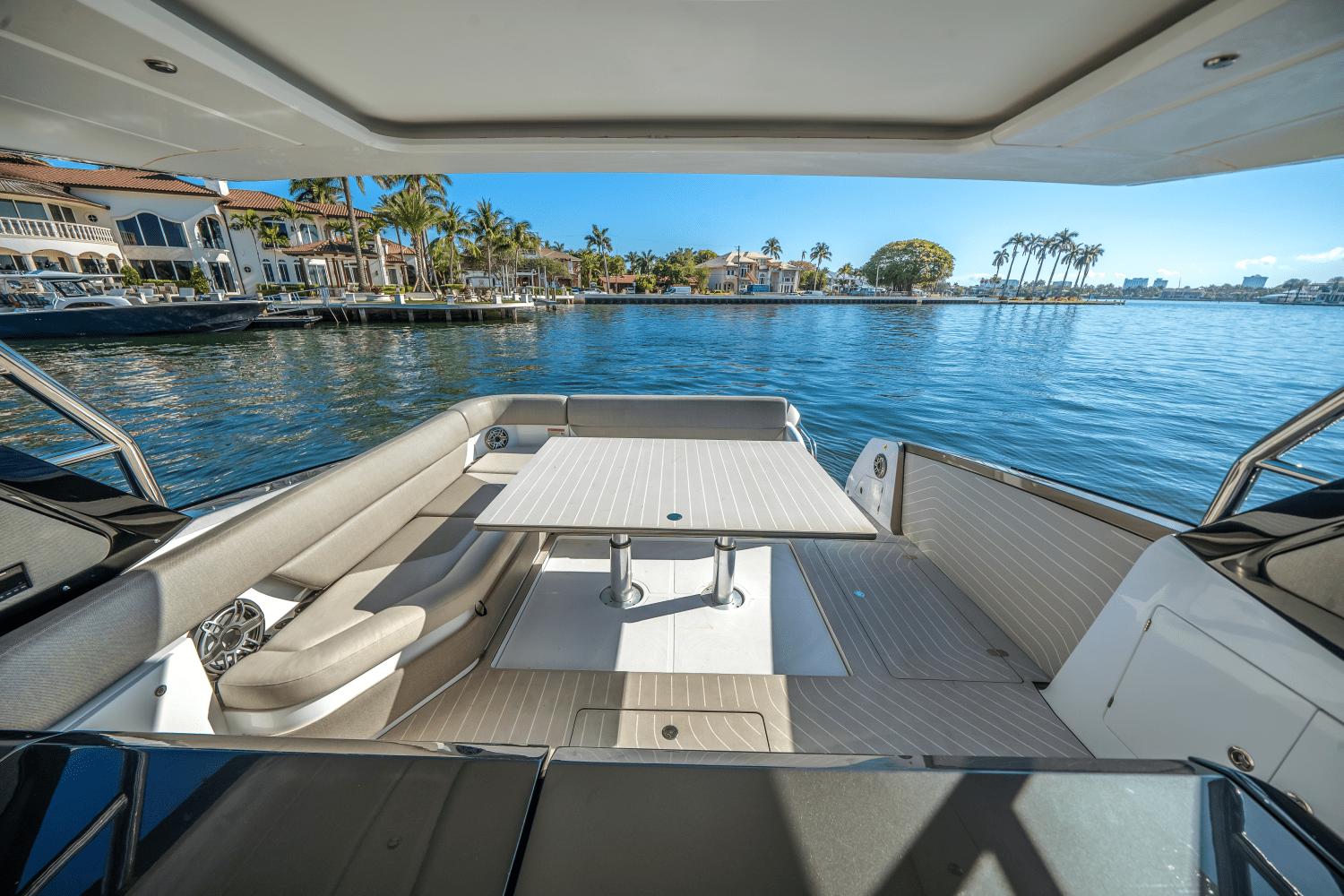

- "L" shaped sofa in dining area

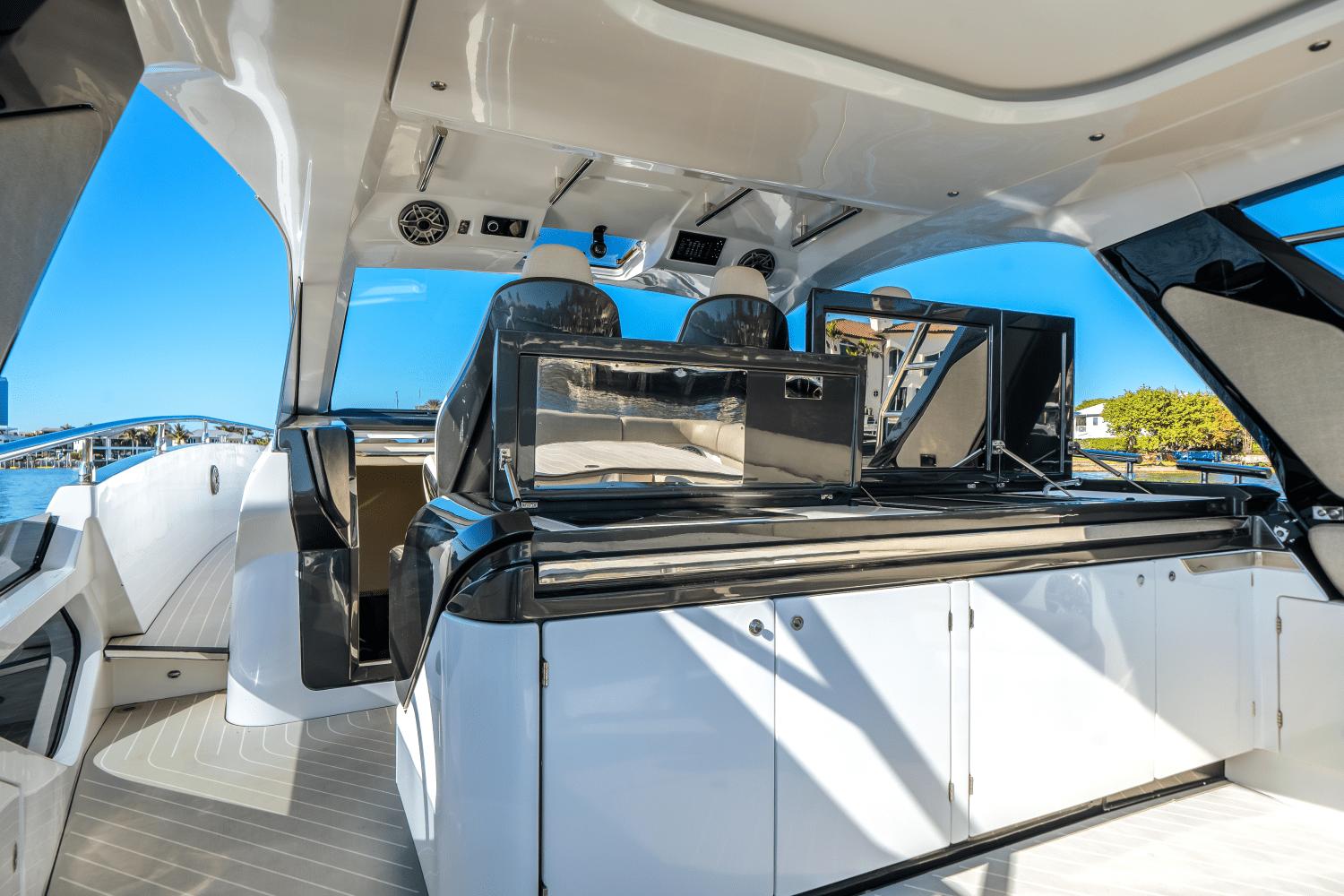

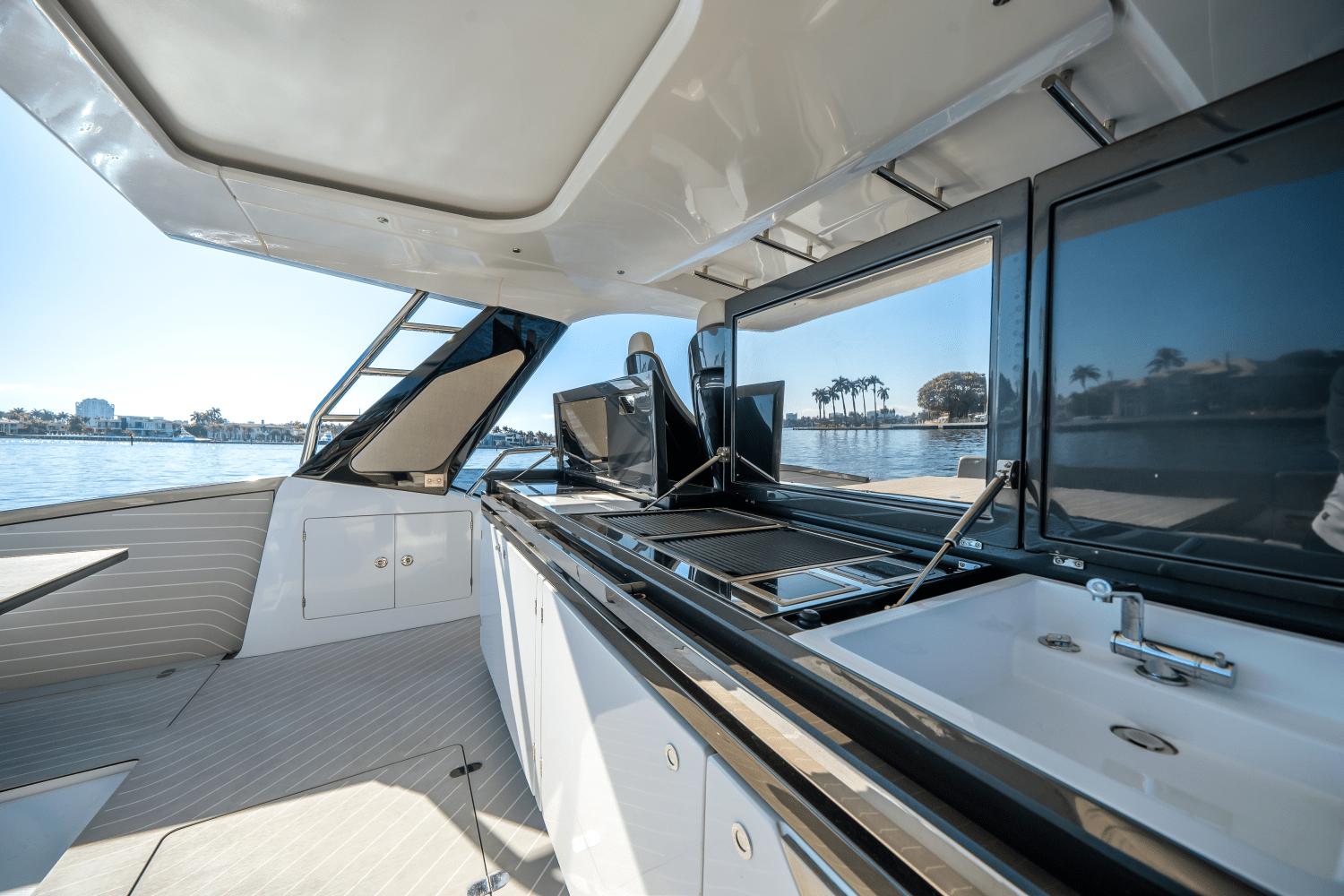

- Cabinet installed crossways, aft of the wheelhouse, with:

- Icemaker

- Fridge

- Engine room access, through hatch located at the center of the cockpit

- Non-slip floor

- Lighting with LED spotlights and bars and mounted recessed on the fabric upholstered ceiling by means of a stainless steel frame

- Scuppers

Aft Platform and Hold

- Hold possibly to be used as a garage for seabob, equipped with manual hatch

- Non-slip floor

- Extractable shower head

- Port side external GRP step for access to the cockpit

- One aft gate

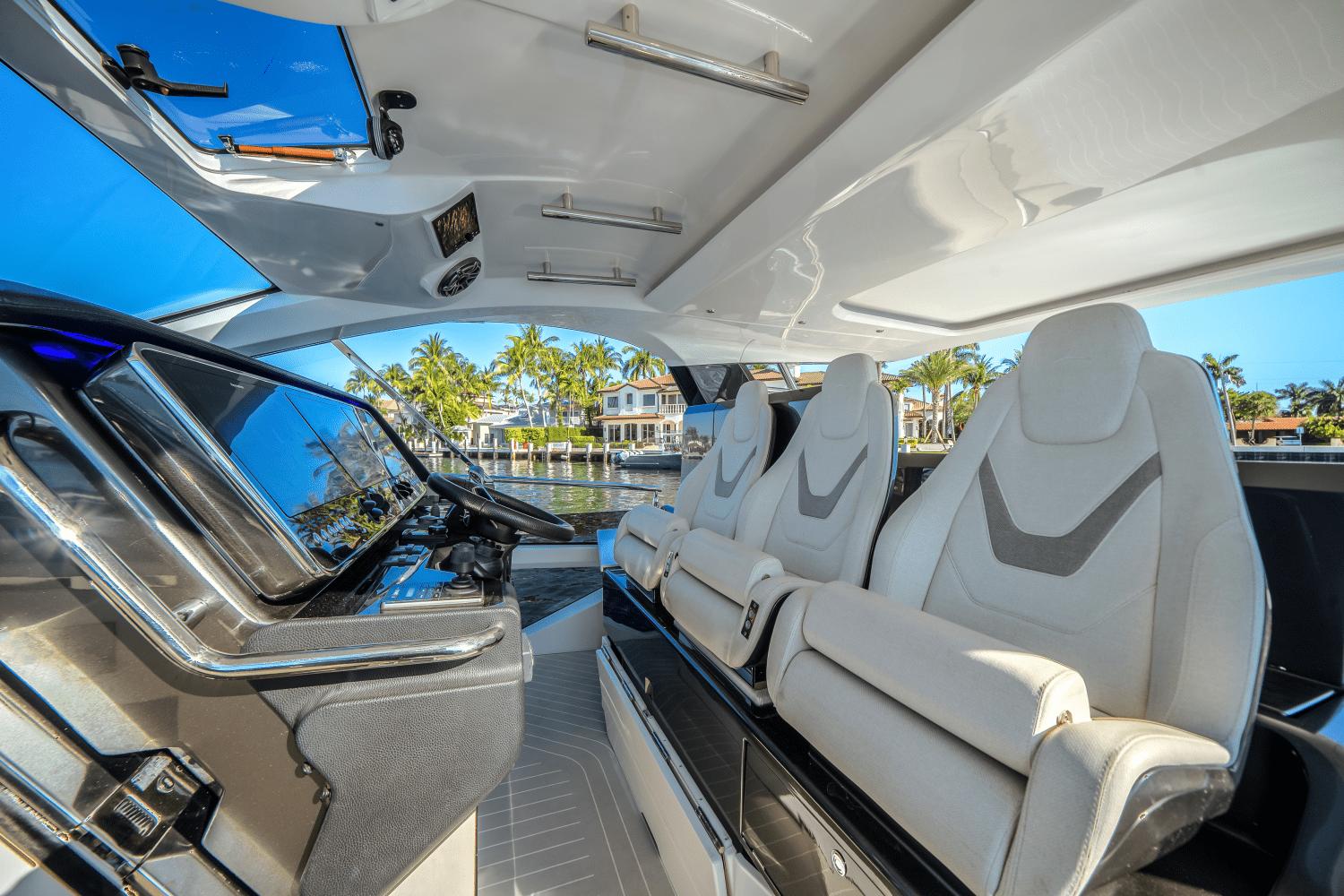

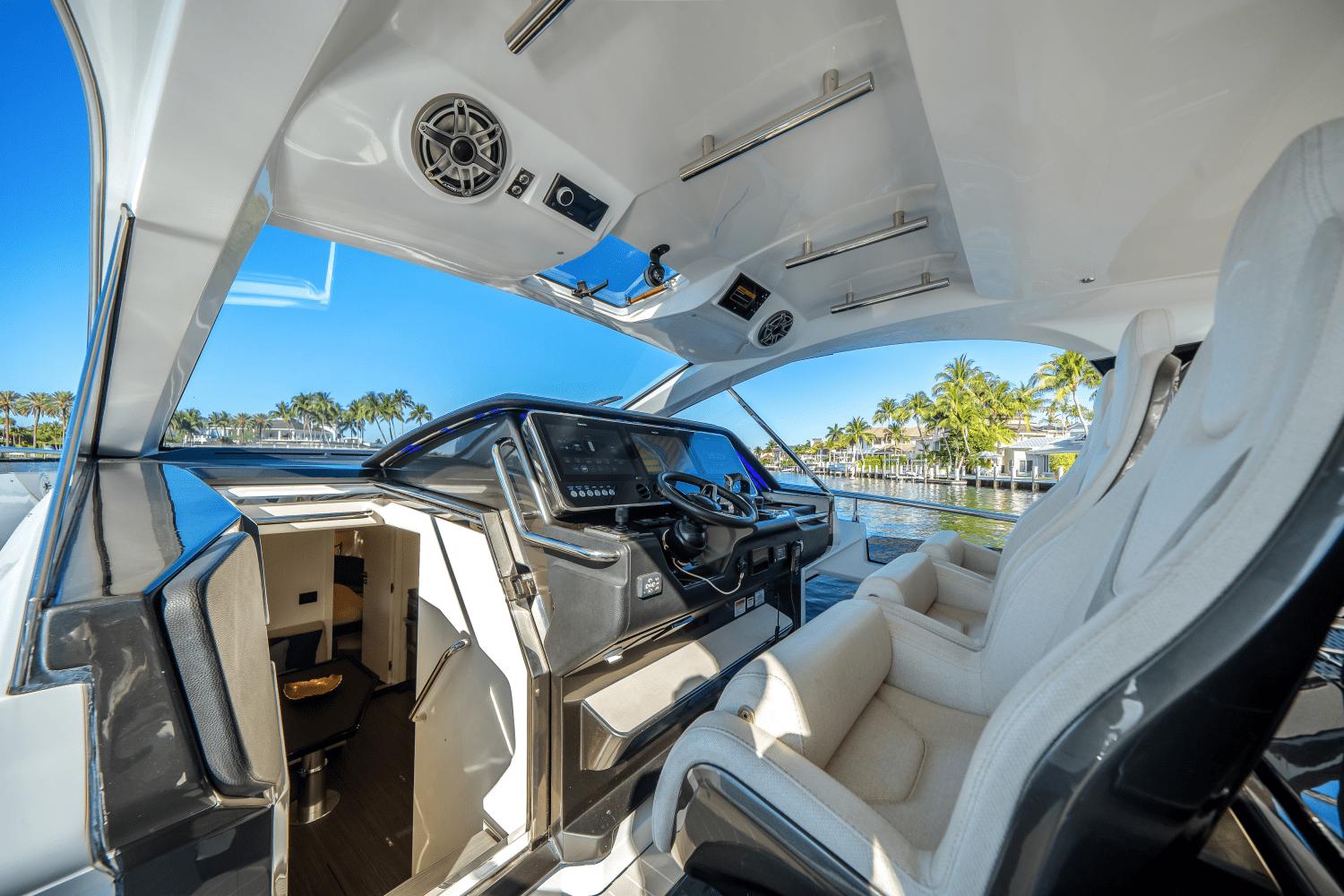

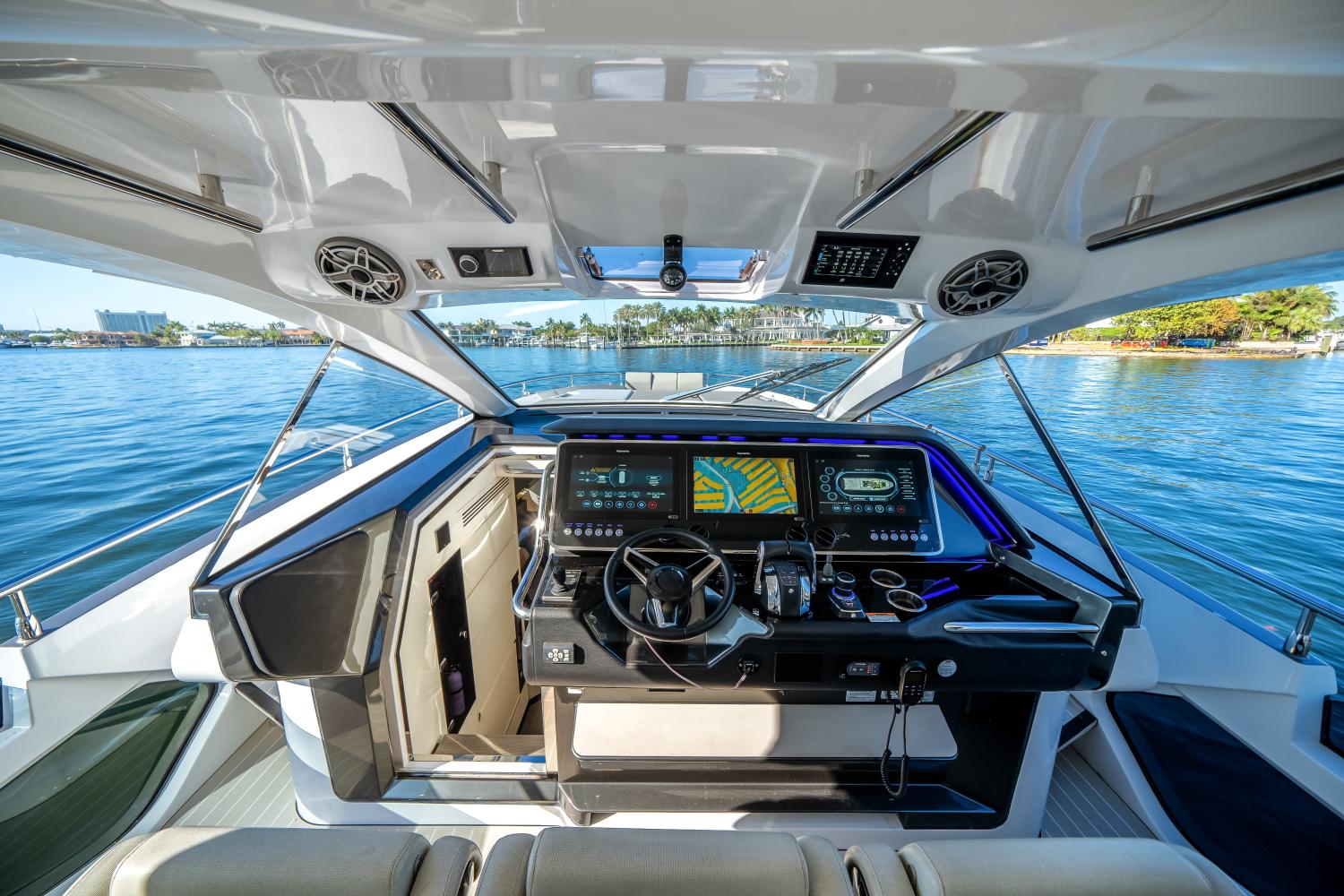

Wheelhouse

The wheelhouse is located at the center; it is accessible from starboard side, through the starboard walk around, or from port side through the aft gate and the cockpit, or through the port walk around. In includes:

- Commander seating area with electric adjustments

- Co-pilot seating area on left and right sides of the commander

- Leather-covered steering wheel

- Dashboard including the following controls:

- Magnetic compass

- 7" Vessel view Mercury display

- Electronic navigation instruments, BRONZE version (*)

- VHF communication system (for USA version)

- Audible alarm controls

- windscreen wiper control

- USB socket

- Dedicated lighting

- Adjustable air conditioning outlets

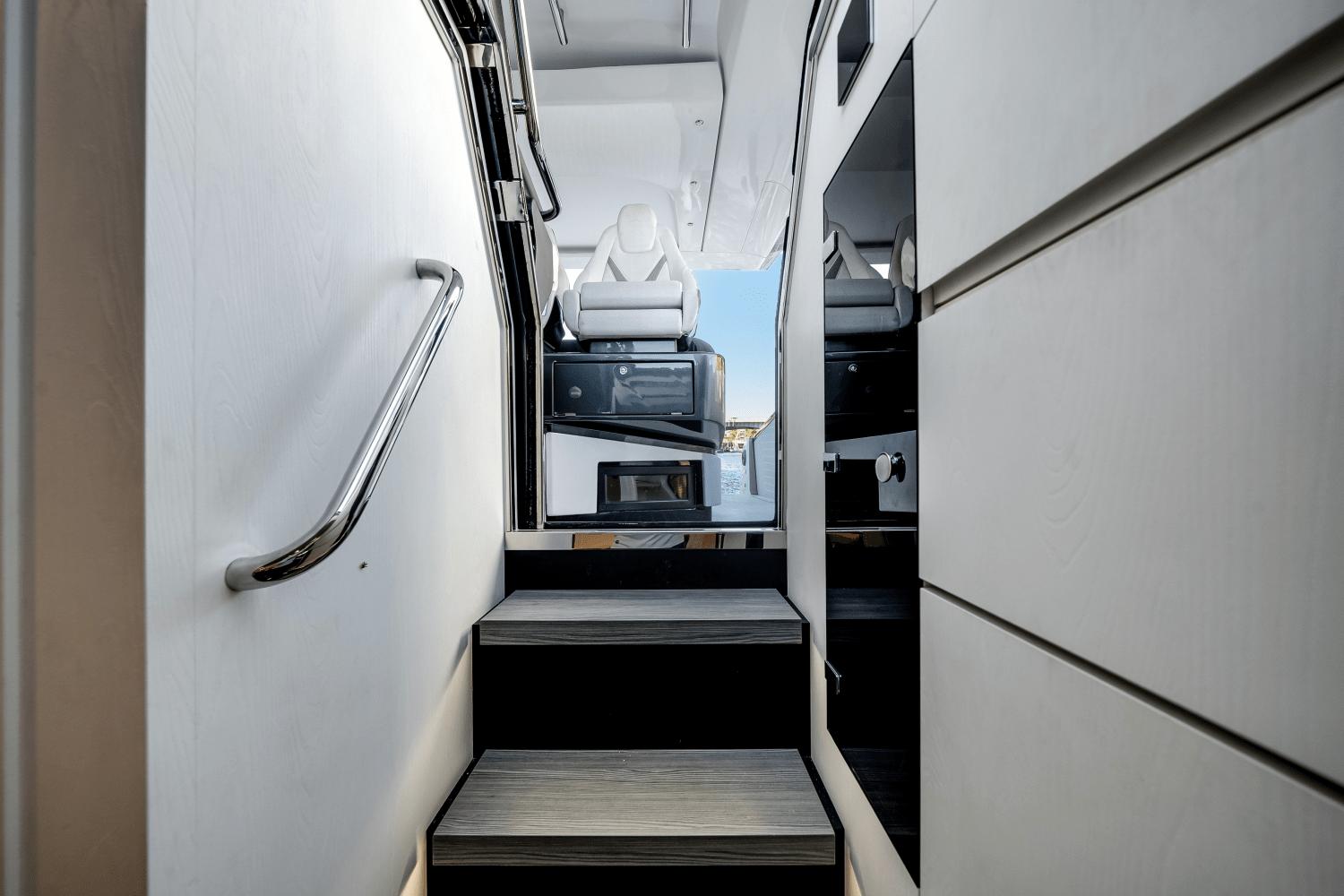

* The manual sliding hatch to access the lower deck is located to the port side of the dashboard.

Interior

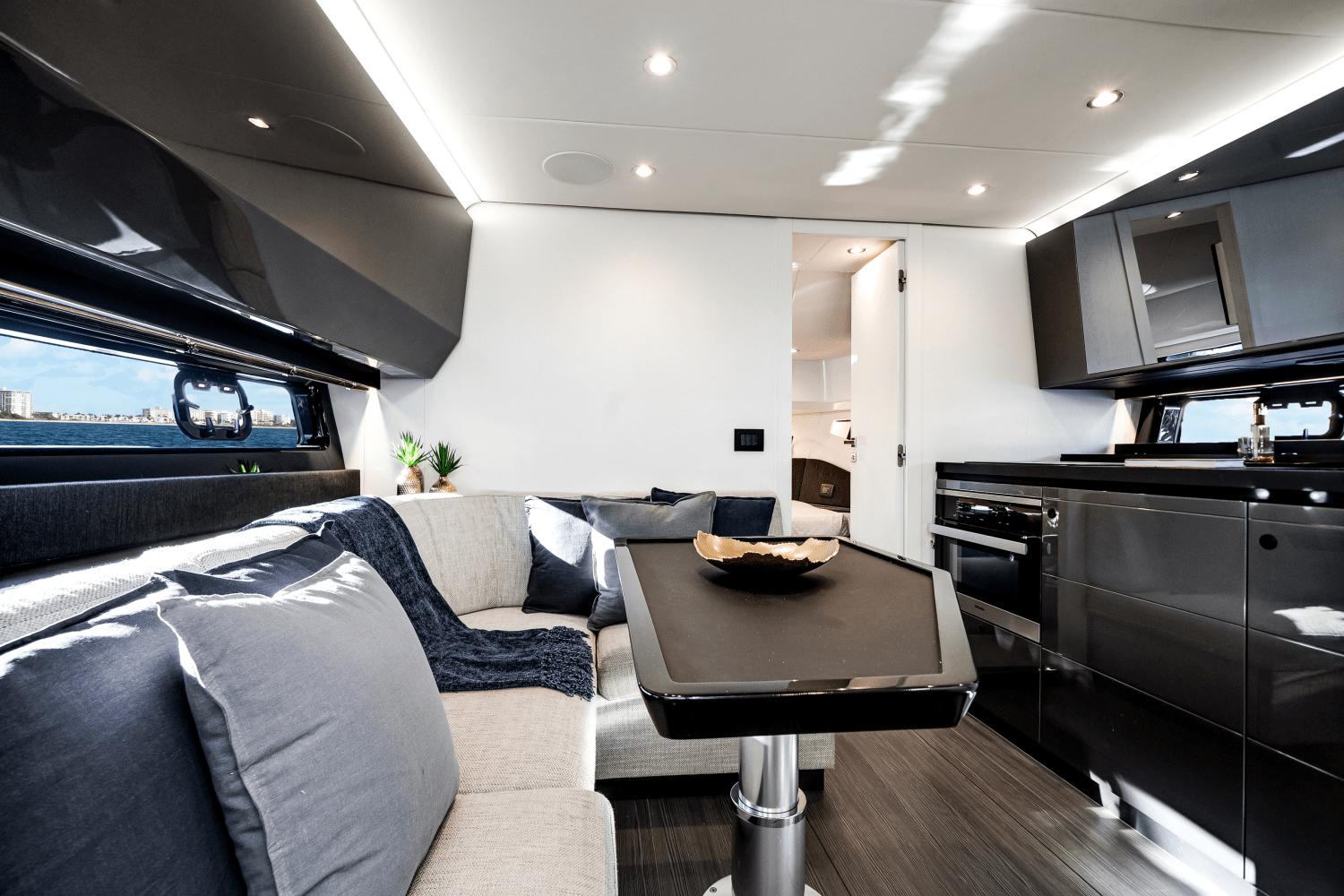

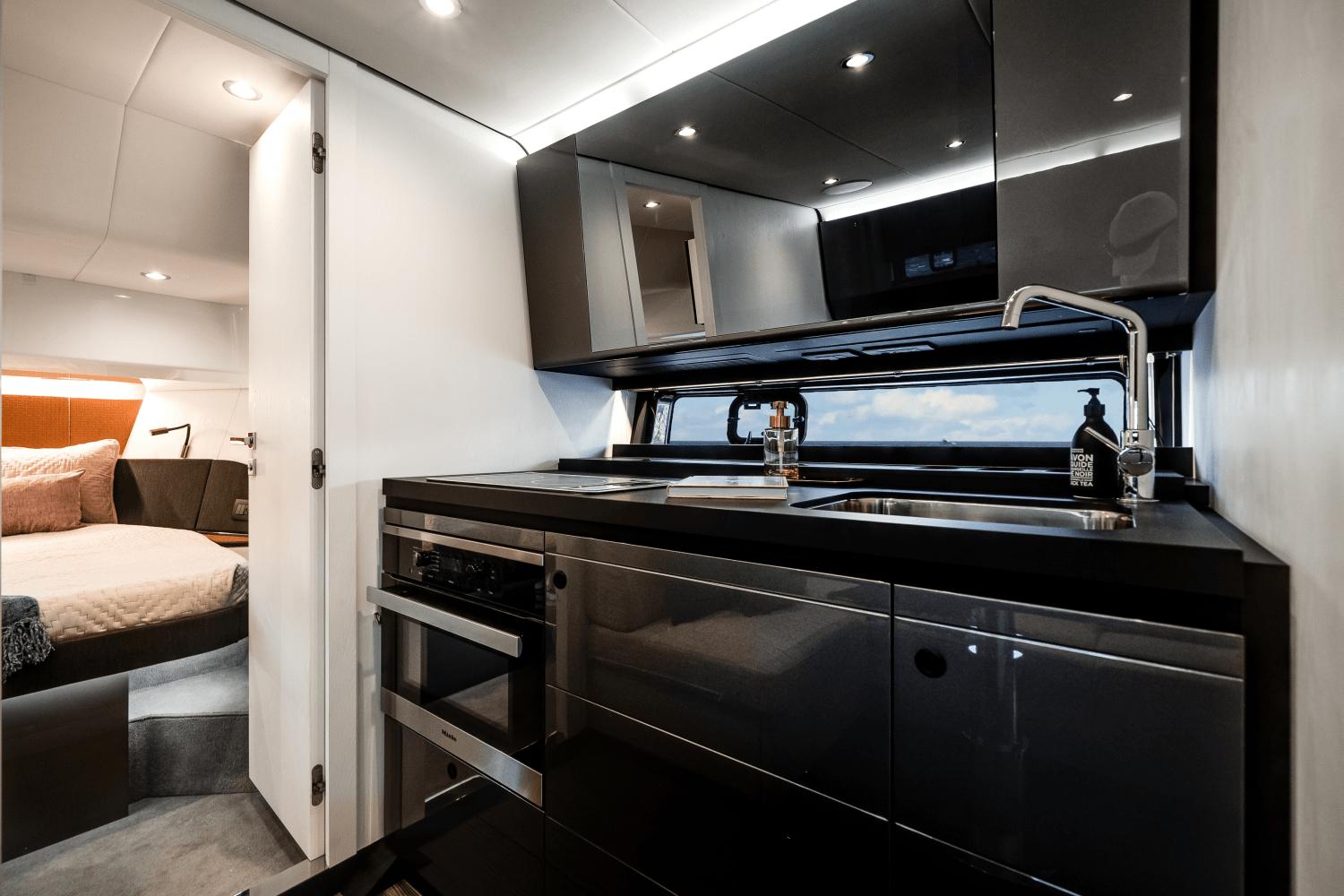

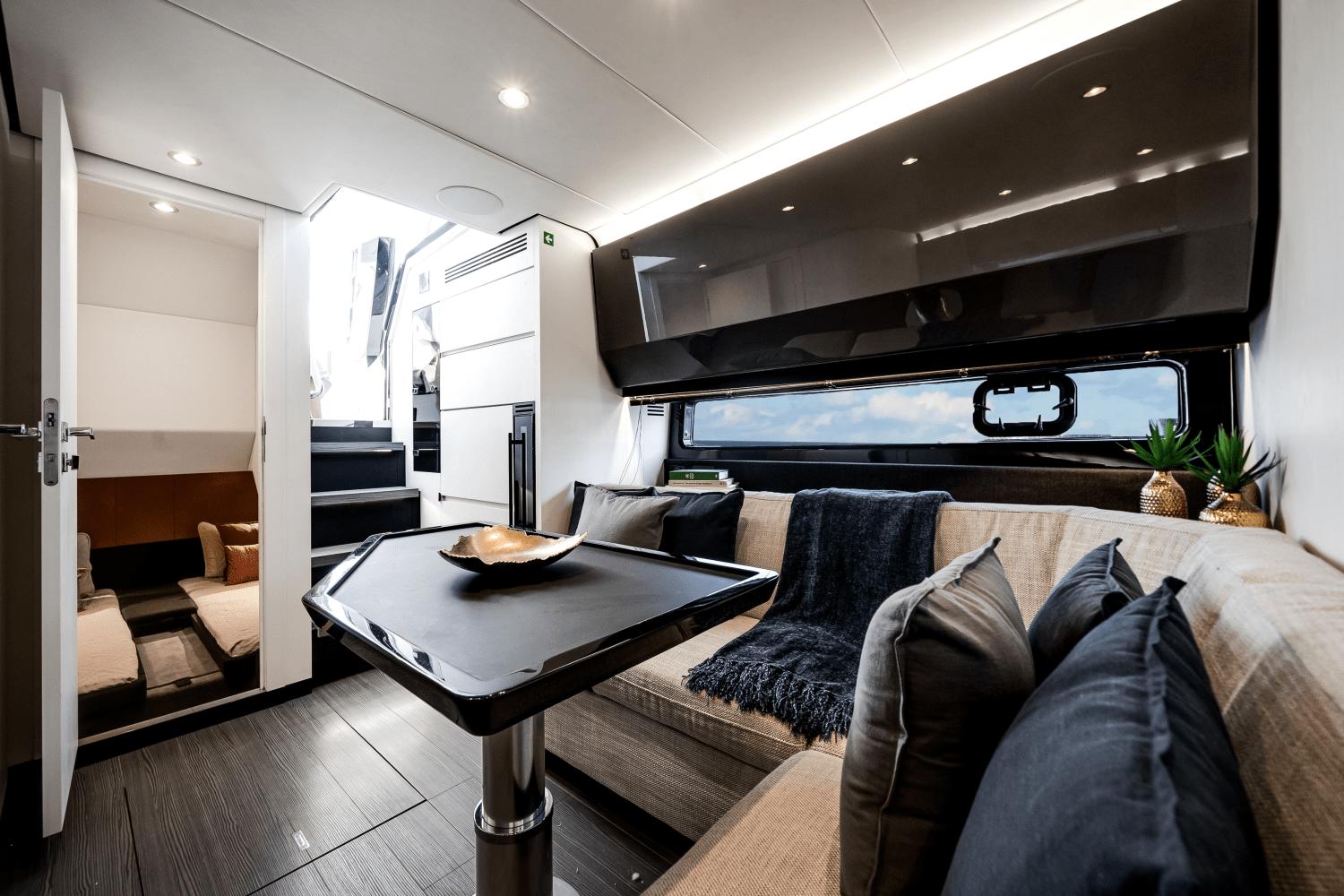

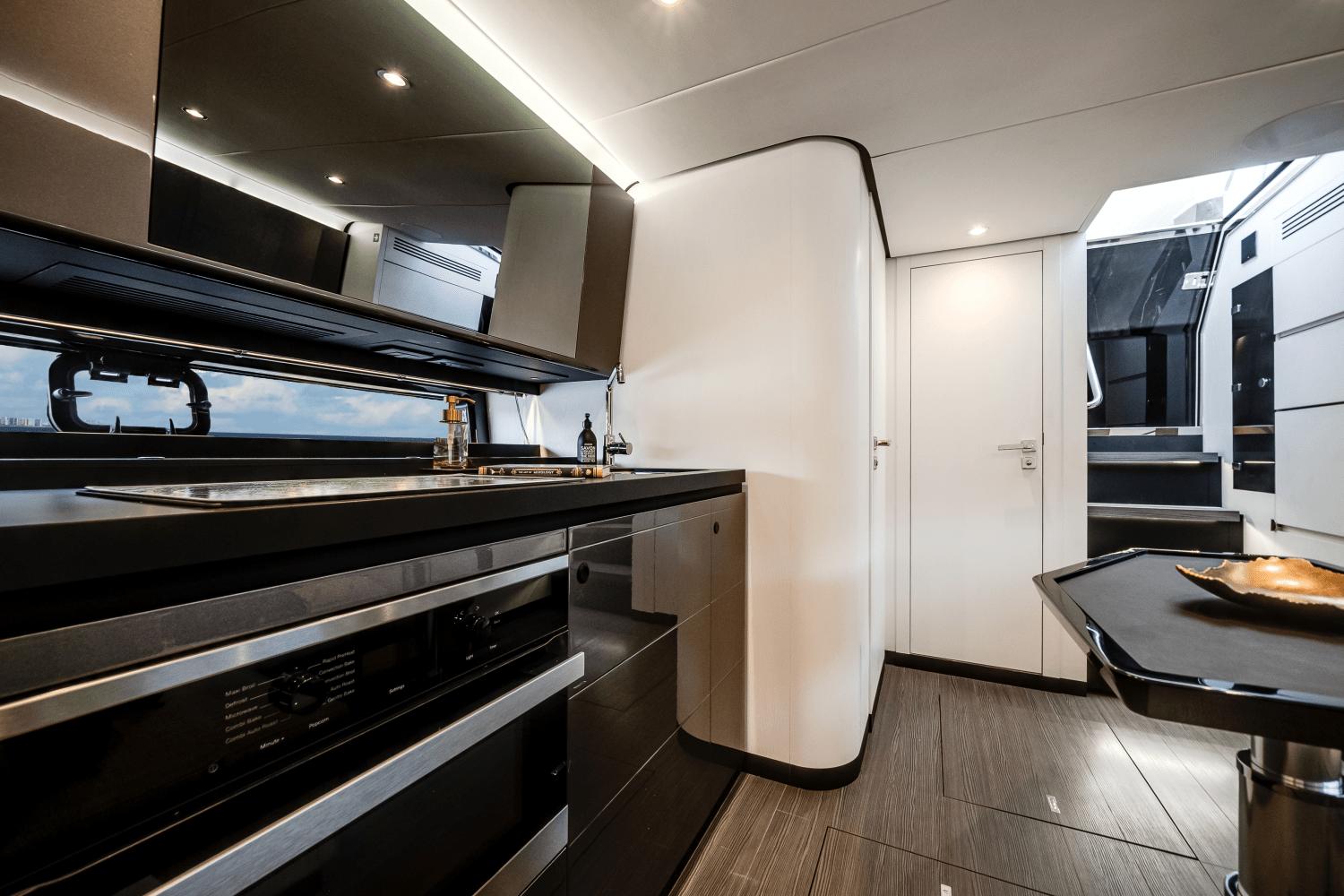

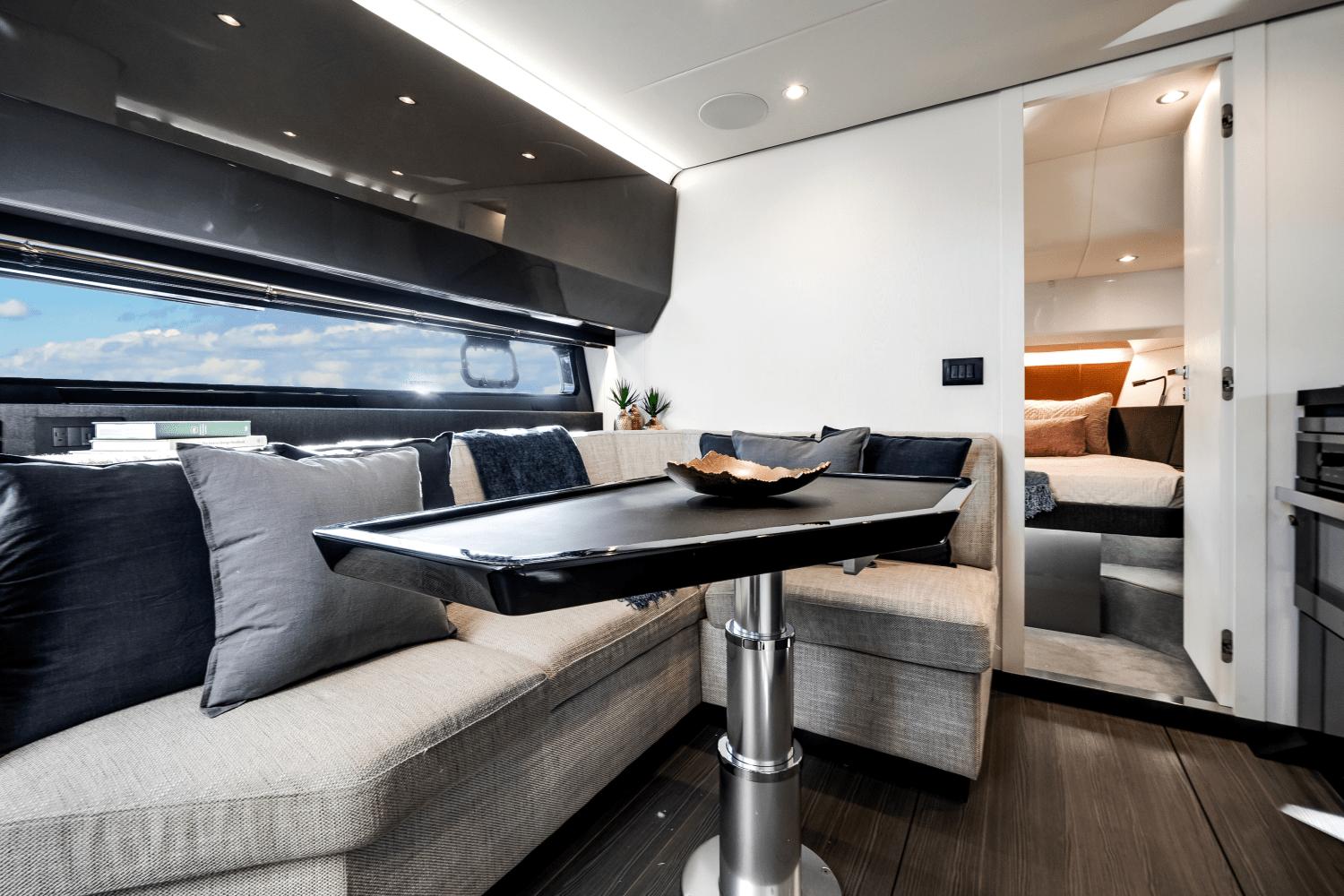

Dinette / Galley

Located amidships, full-beam, it is the space that connects the master and guest cabins, the head, and, through the manual sliding hatch, the exterior.

It is essentially composed of:

- "L" shaped three seater sofa, placed longitudinally on port side

- Table with fixed stainless steel base and HPL plane

- Household appliances:

- Induction type range

- Fridge/freezer

- Microwave oven + grill

- Carpeted floor

- Port and starboard windows with builtin portlight, with curtain

- TV pre-installation above galley cabinet

- LED technology spotlights

- LED courtesy lighting under the steps

- Sockets

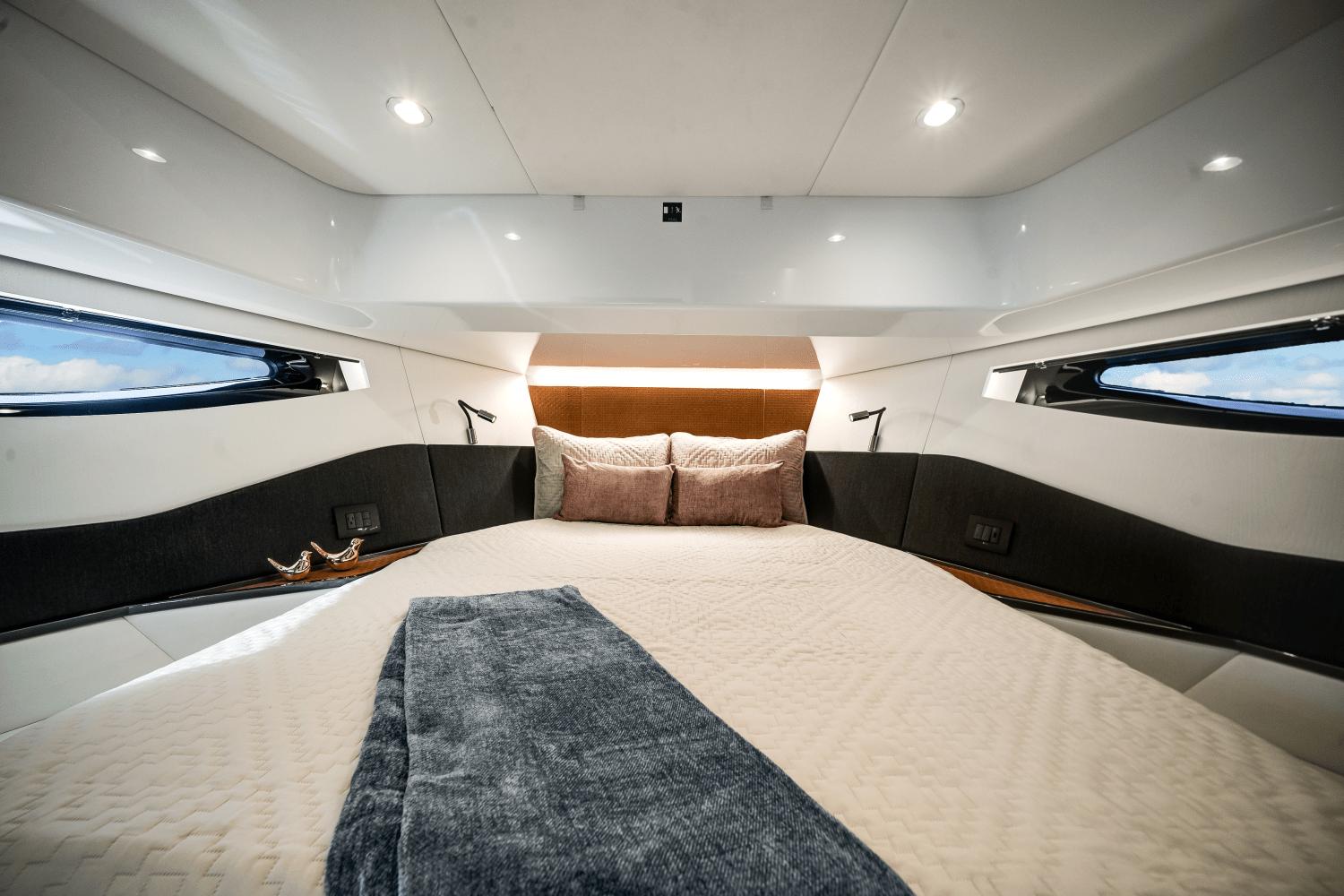

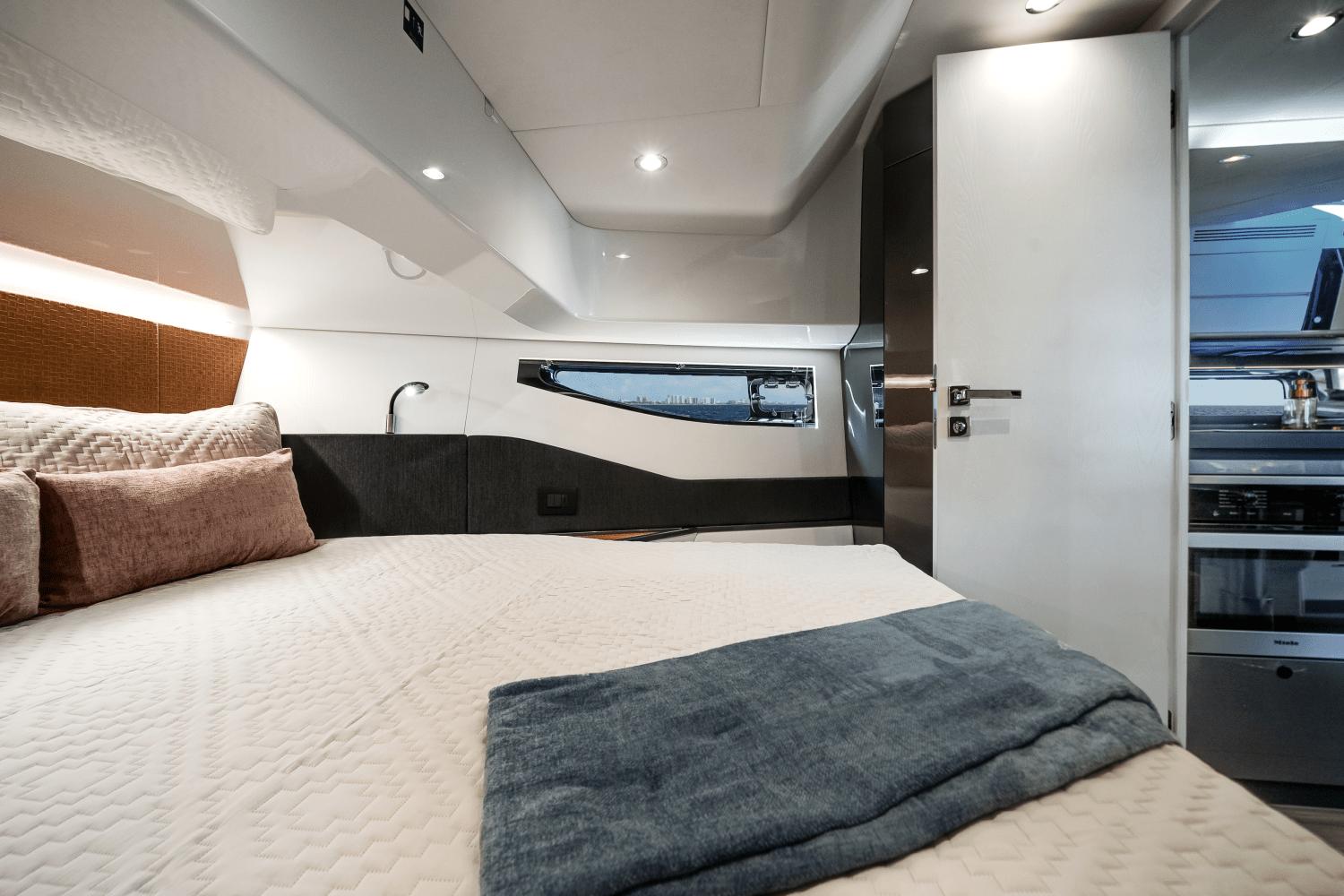

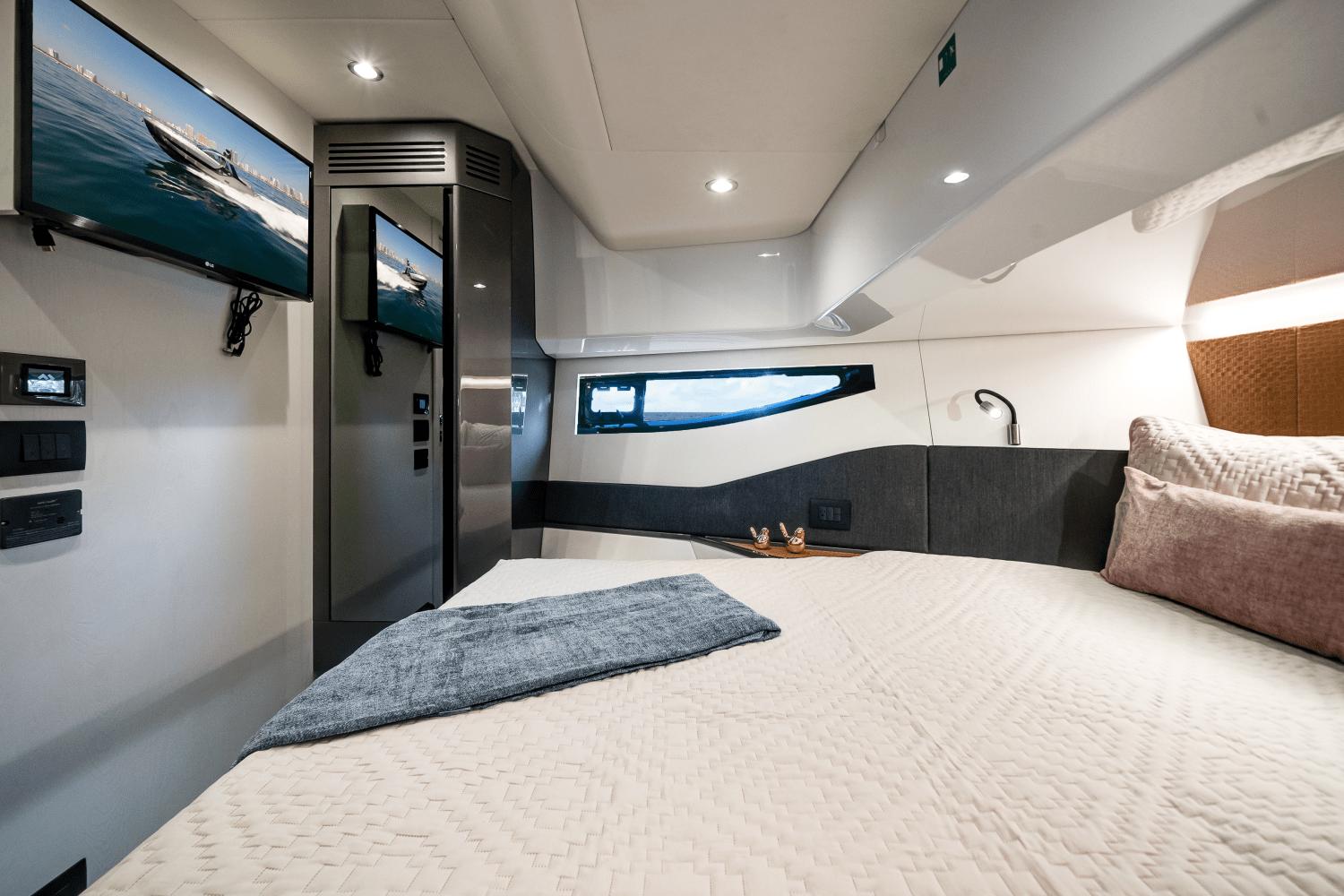

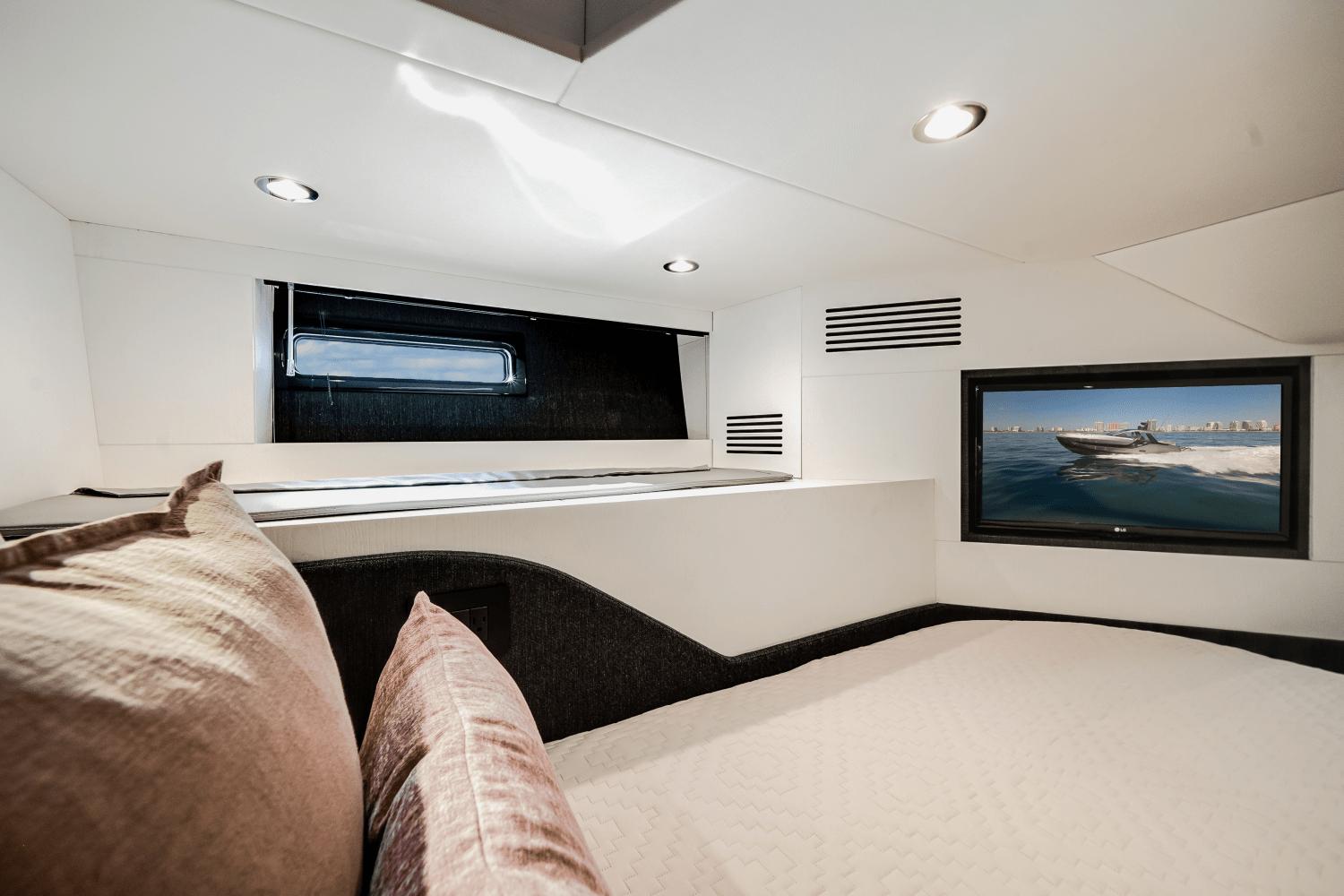

Master Cabin

Located at the bow, it is composed of:

- Wooden access door

- Double bed with large locker underneath

- Mattress, pillows and bedspread

- Leather-coated headboard

- Two reading lights

- Two bedside tables

- One wardrobe column on starboard side with hanger bars and external mirror

- One column on port side with external mirror

- Carpeted floor

- Two windows with built-in portlights on port and starboard sides, with curtains

- Lighting with spotlights on leather-upholstered ceiling

- Sockets

- Hatch for escape way on fore deck

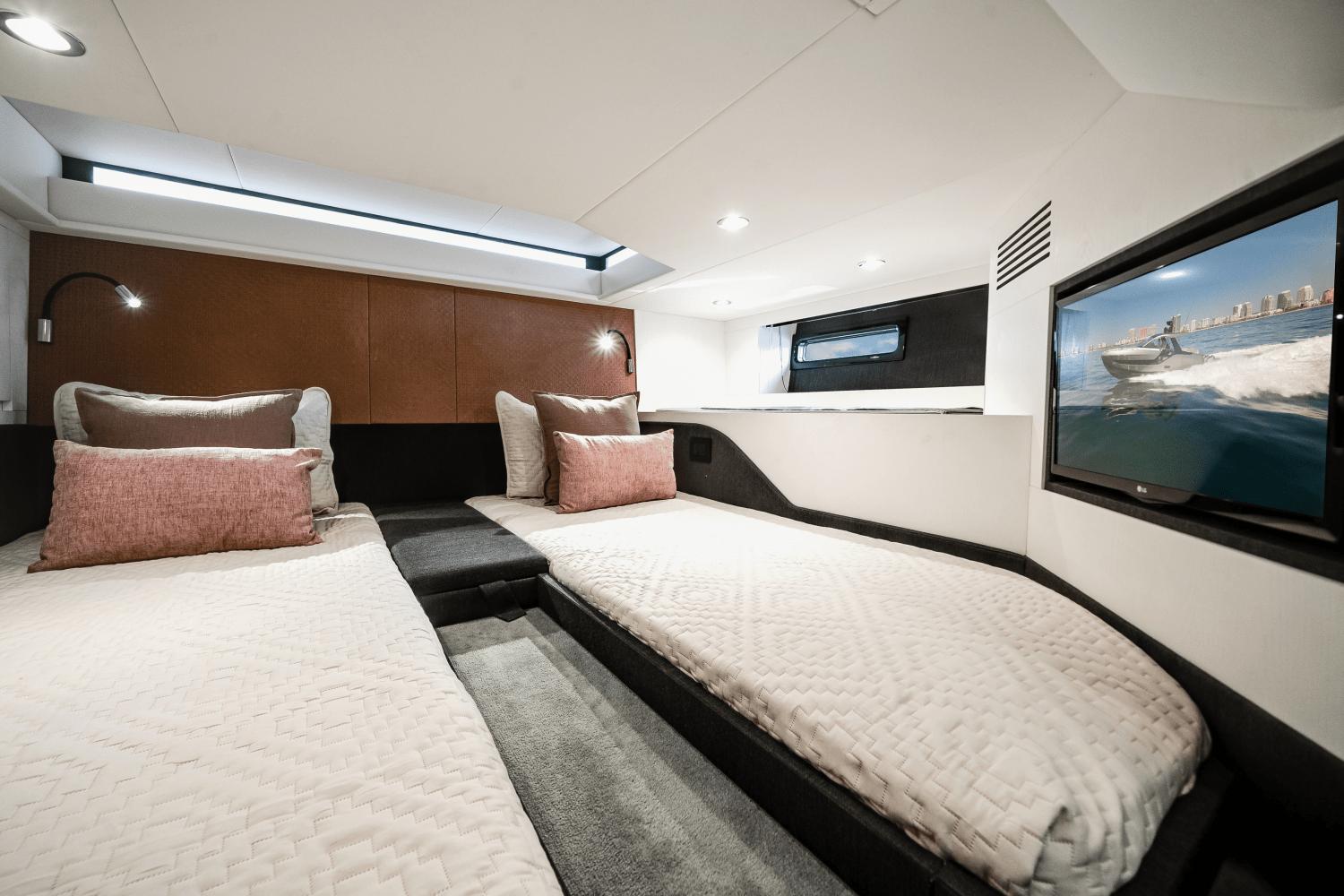

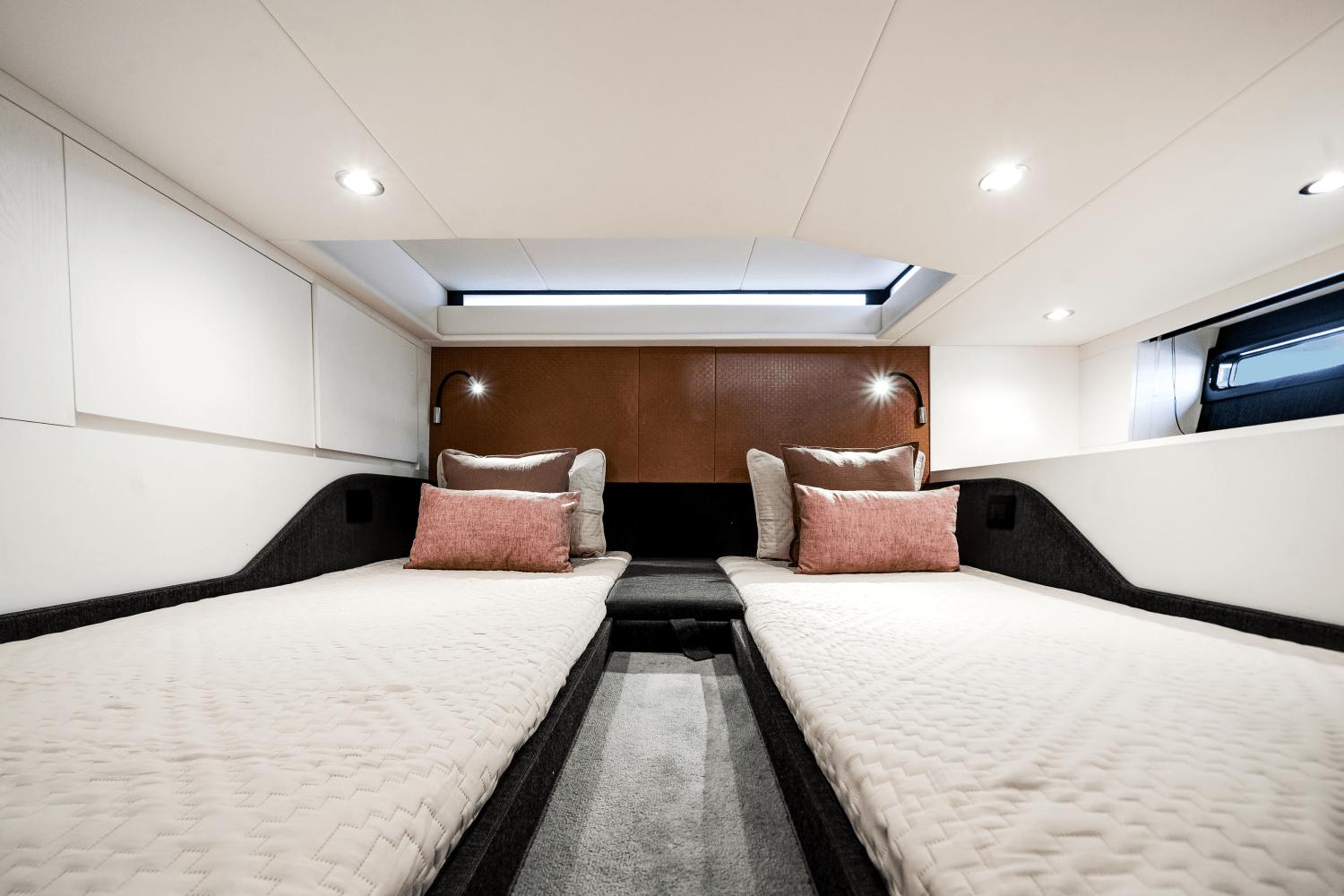

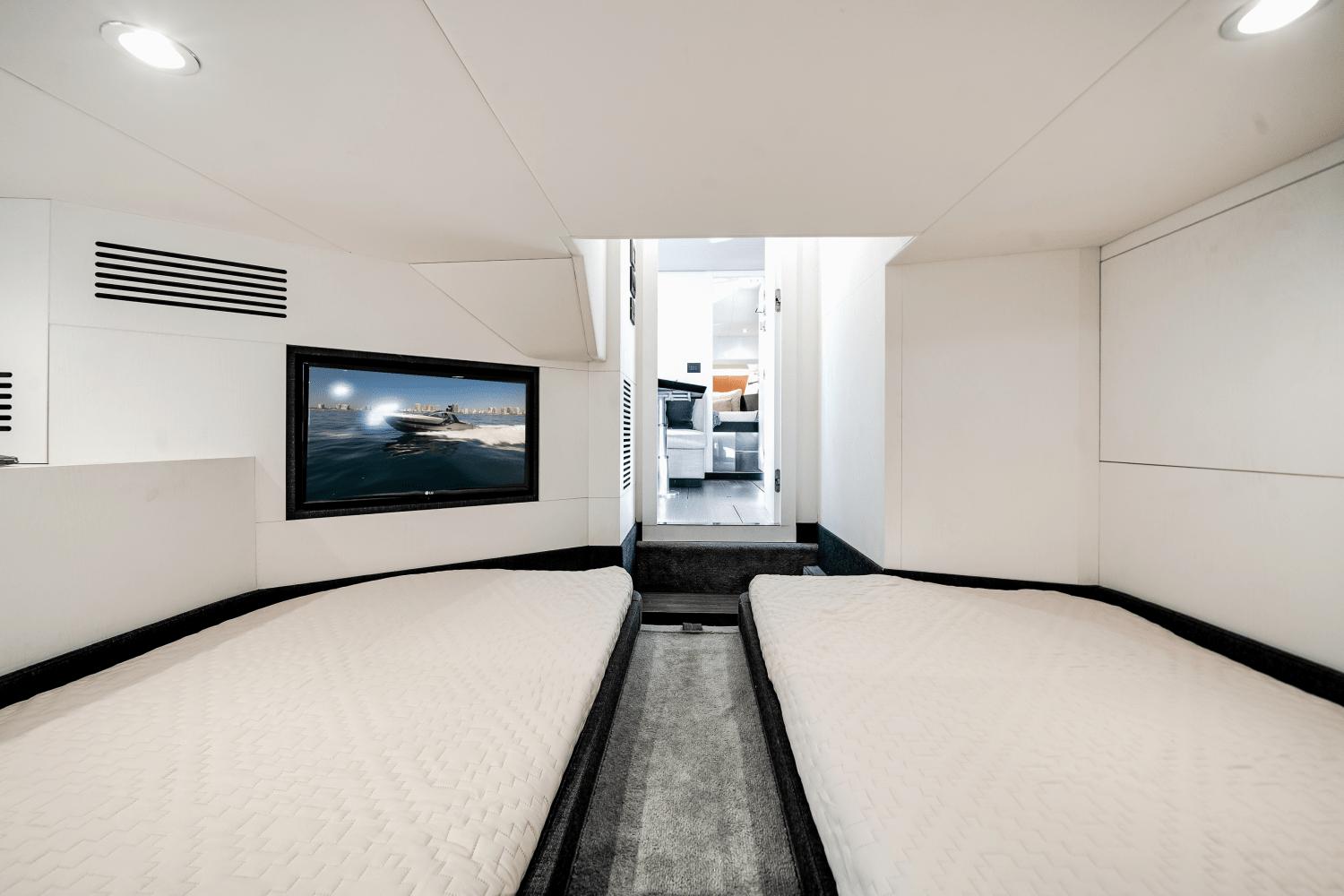

Guest Cabin

Located abaft the dinette, it is composed of:

- Wooden access door

- Two fixed single beds with system to transform them into a double bed

- One storage located under the two beds

- Mattresses, pillows

- Leather-coated single headboard

- Two reading lights

- One bedside table between the beds

- One wardrobe on starboard side

- Carpeted floor

- One side window with curtain

- LED technology spotlights

- Sockets

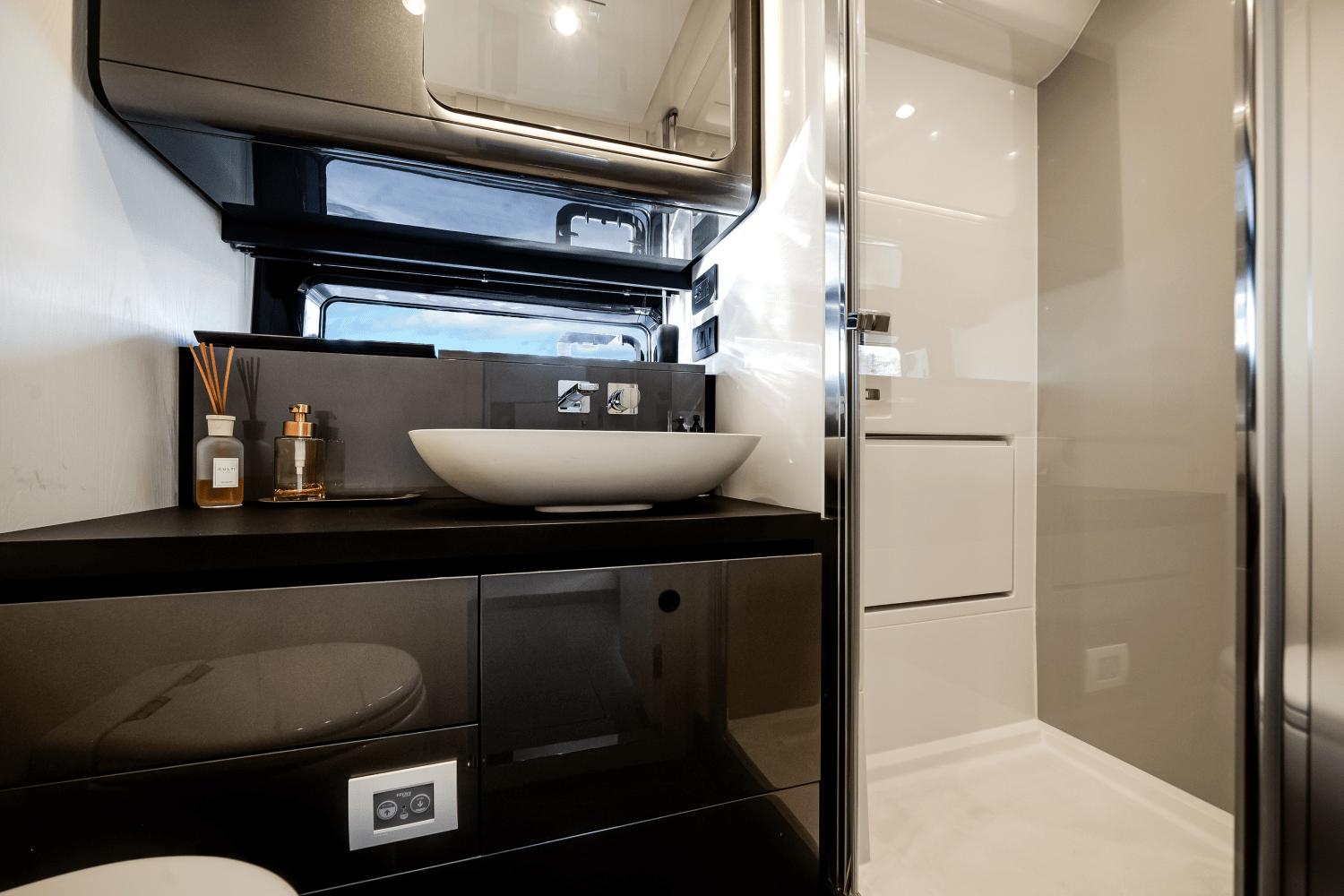

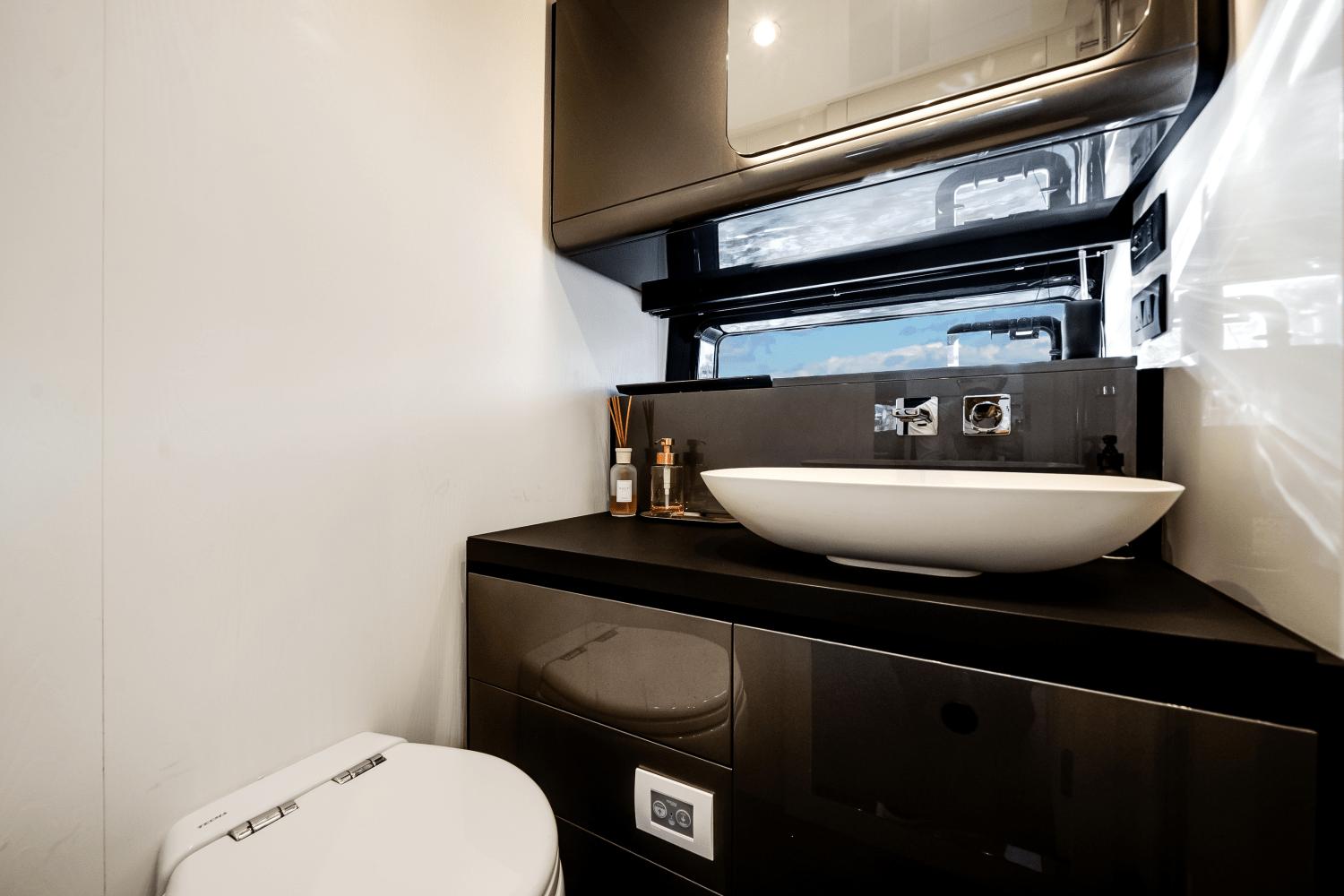

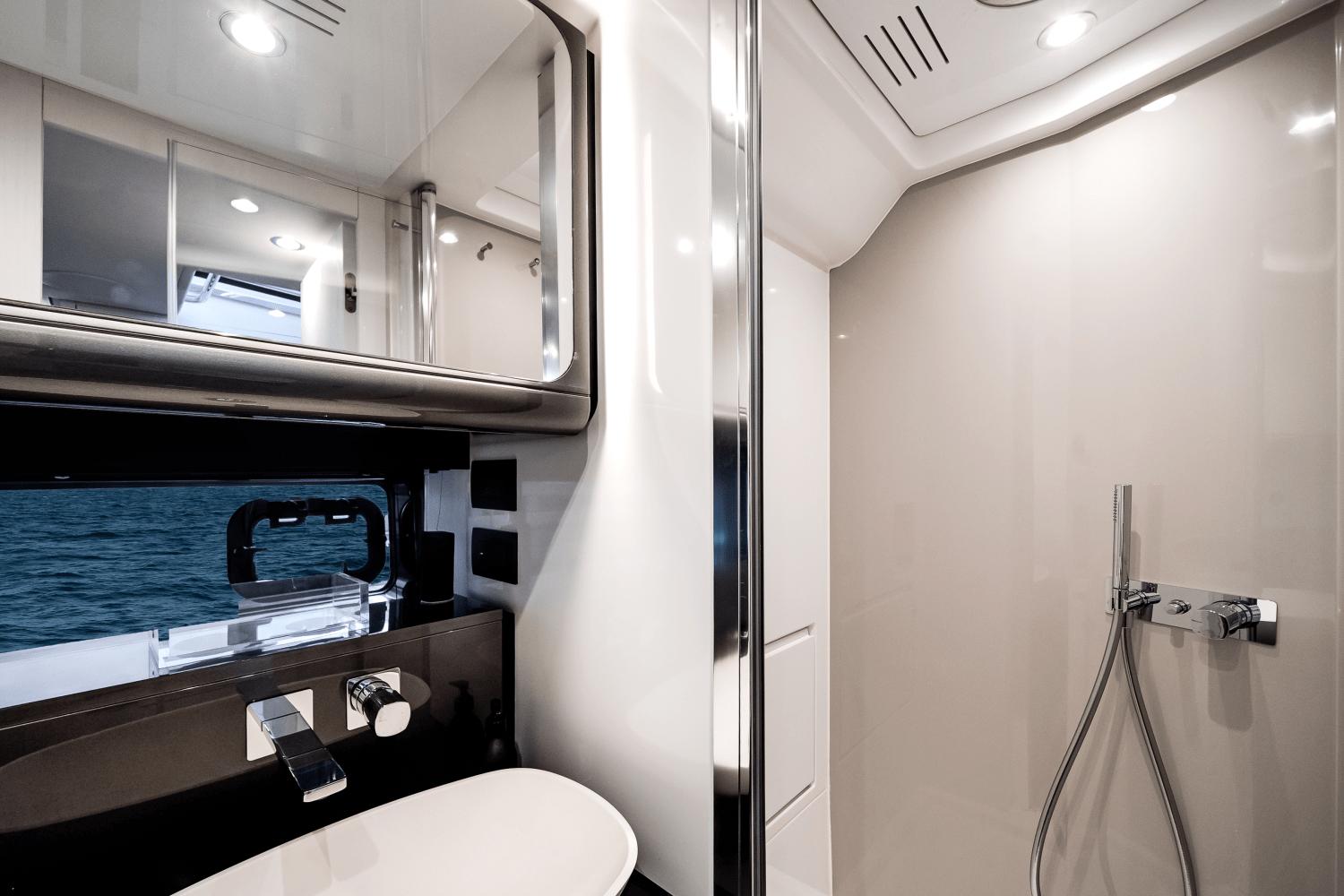

Head

Located on starboard side, it is composed of:

- Access from dinette through wooden door

- Washbasin on the top in HPL

- Faucets

- Storage under the washbasin

- Mirror above the washbasin

- Toilet

- Shower enclosure with:

- Glass access door and aluminum frame

- GRP shower enclosure walls and painted insert

- Tilting seating area

- GRP non-slip floor

- Mixer tap

- Hand-held and ceiling-mounted shower head

- Lighting on ceiling

- Laminated floor

- Side windows with recessed portlight, provided with curtain

- Head accessories

- Lighting on ceiling

- Socket

Systems

Electric system

Main characteristics

- Shore-powered power supply

- Electric panels for systems area:

- One main panel 12/24 V DC, located aft of the petrol tank, in the engine room

- One shore differential panel 230 V AC located in the cockpit locker

- Electric panels in cabins area:

- One main panel 230 V AC for power circuit breakers, located in technical storage and accessible from guest cabin (aft, starboard)

- One distribution panel 230 V AC – 24 V DC, located in storage, on port side of the access to the dinette from outside

- Onboard voltages:

- 230 V - 50 Hz AC STD

- 24 V DC from battery set

- 12 V DC from battery set and AC/DC voltage reducer

Generator (for USA version)

- One 14 KW / 60 Hz generator with ignition protected kit

Shore Power Sockets

- EU one 230 V AC - 50 A socket

- The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches

Batteries

- Four engine batteries 12 V – 90 Ah

- Four service batteries 12 V – 90 Ah

- One 12 V - 70 Ah battery for generator (for USA version)

- Two 12 V – 25 A engine generators (one of which charges also the generator)

- One 24 V – 60 A service battery charger

Lights and Sockets

- 230 V AC sockets for main utility power supply, EU type

- USB sockets

- Internal lighting: 24 V LED type

- External lighting: 24 V LED type

Propulsion

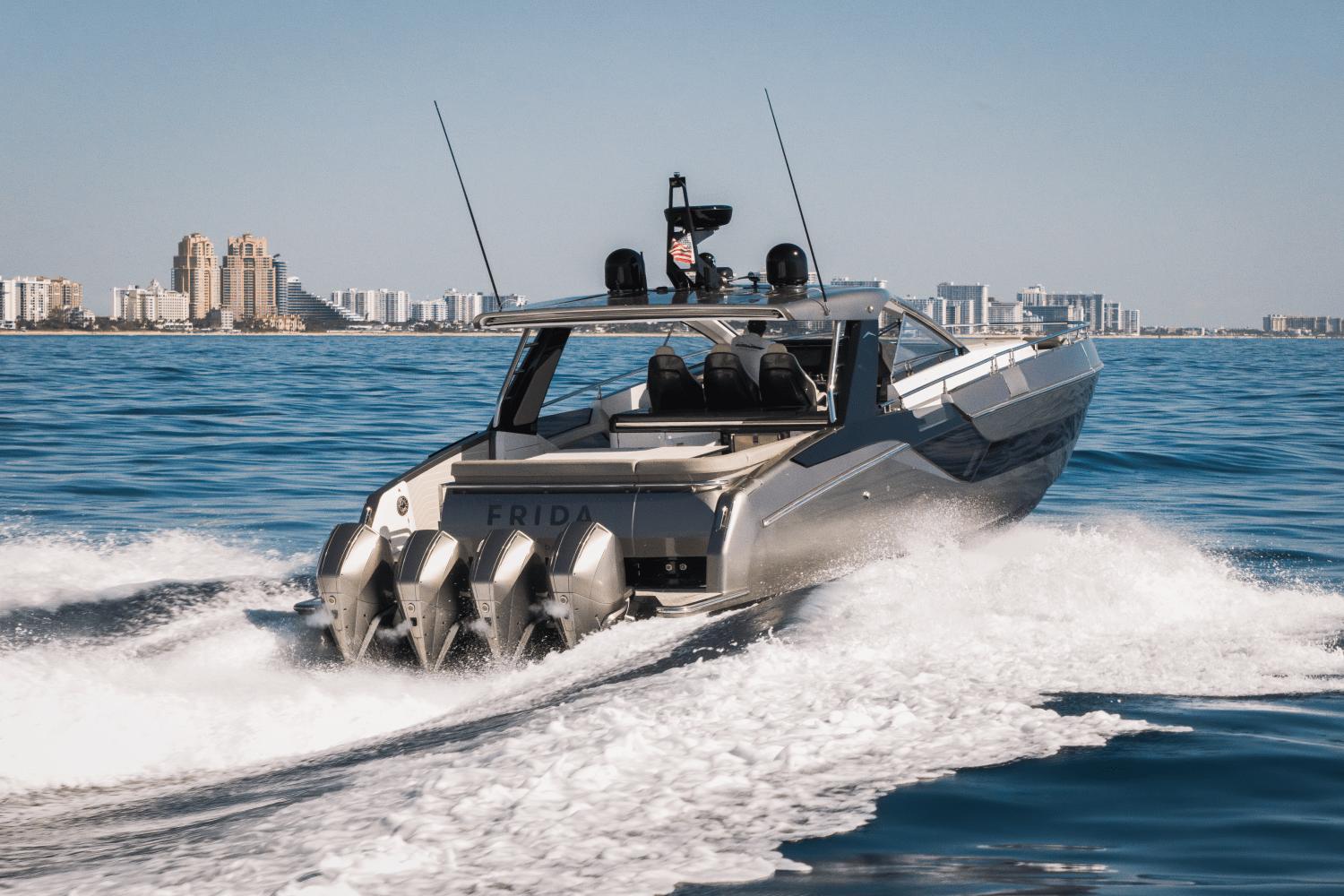

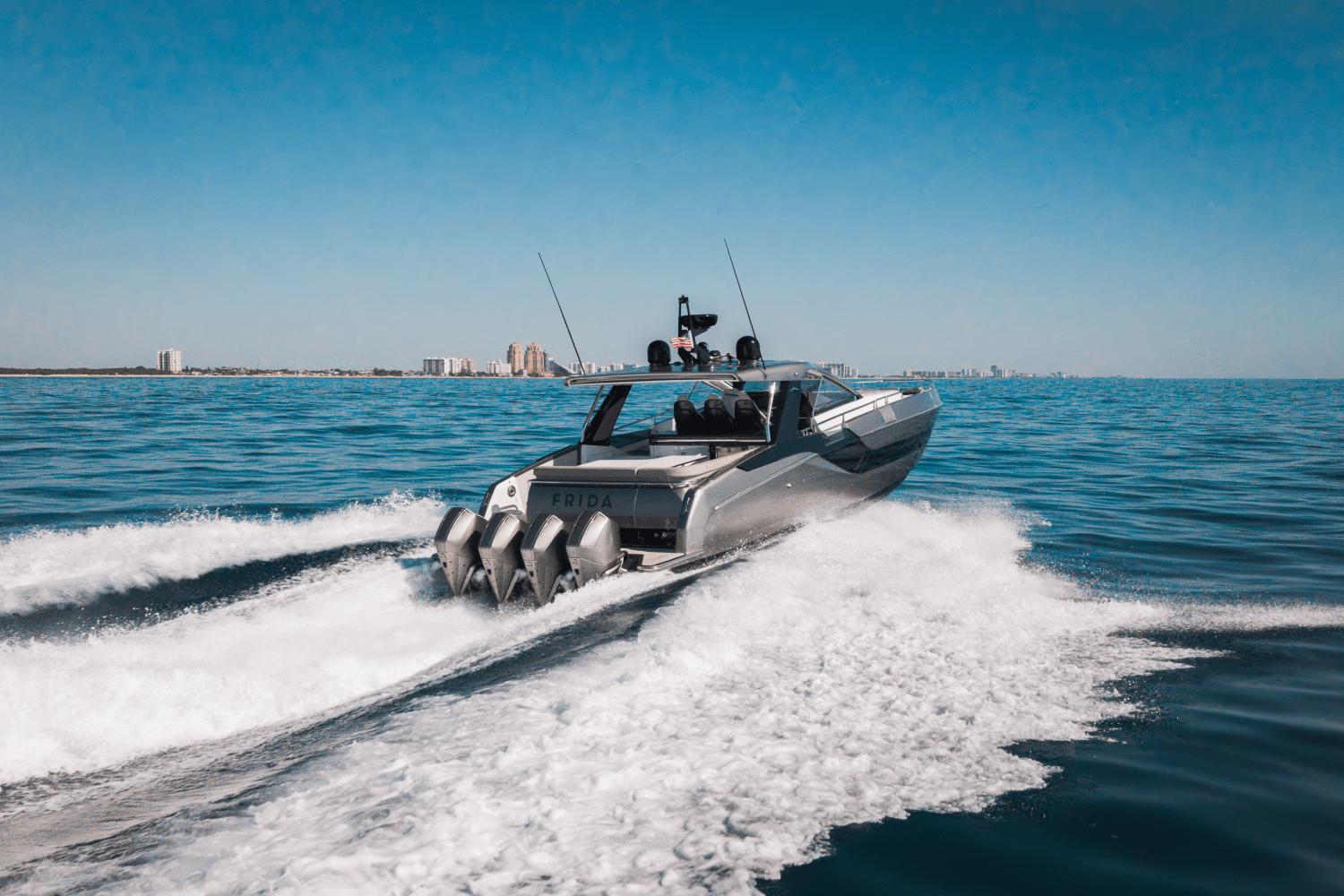

- Four V8 MERCURY outboard engines, 450 hp each

STD (BRONZE) Electronic Navigation Instruments

For a detailed list of alternative/additional equipment available, please refer to the Optionals price list.

Fuel system

- One petrol tank, made in aluminum, installed transversally in the engine room, total 2340 l (618.2 US.liq.gal.)

- One electronic fuel level sensor monitored through indication on the wheelhouse

- One visual level gage

- Four engine filters

- One tank vent

- Remote petrol shut off from tank to engine through solenoid valves

- Refueling on deck, starboard side

Diesel System for Generator (for USA version)

- One 150 l (39.6 US.liq.gal.) diesel tank, in aluminum, located forward of the service compartment, at the center, under the petrol tank

- Two fuel level sensors for local monitoring and remote monitoring from the wheelhouse

- Manual valve and RACOR 120 pre-filter on fuel delivery line to generator

- Manual valve on fuel return line from generator

- One tank discharge on starboard bulwark, with siphon

- Refilling through a filler cap located aft of the starboard bulwark

Bilge system

- Main system composed of two automatic and independent pumps located in each watertight compartment:

- One in engine room

- One (central) in the locker under the guest cabin floor (aft cabin)

- Secondary or auxiliary system composed of a manual bilge pump, whose control is located inside the locker on port side forward of the cockpit which allows, through a switch, to suck from the zone under the guest cabin bed or from the service compartment.

Fresh Water System

- 300 l (79.3 US.liq.gal.) plastic fresh water tank in technical locker, under the galley dinette floor

- Water refilling through opening in central part of starboard walk around

- Water pressure pump unit (24 V) located in the engine room, starboard side, with electronic control

- 40 liter (10.6 US.liq.gal.) water heater

- 230 V - 50 Hz AC - located under the dinette/galley floor

- Fresh water toilet flushing

- System that can be isolated by ACORN manifolds located on starboard side at the head bulwark

Black Water System

- One TECMA toilet

- One 106 l (28 US.liq.gal.) Dometic tank with built-in pump, located in the engine room

Gray Water System

- 9 l (2.4 US.liq.gal.) plastic collection tray, located under the guest cabin floor

- One outboard discharge pump

- Two air conditioning condense collection trays under the dinette/galley floor and under the guest cabin floor (together with the air conditioning system – USA version)

Ventilation / Extraction

- One extractor located in the engine room, port side, approx. 7.2 m3/min (254.27 cu.ft/min) connected to the outside through ø 100 mm (3.94 in) pipe. The air intake is from starboard side through an opening provided with water separator

Air Conditioning System (for USA version)

- Power supply from onboard generator or from shore

- One dedicated seawater electric pump with relevant seawater intake installed in the service compartment

- Distribution:

- Dinette/Galley and Guest cabin: 12000 BTU

- Master cabin: 6000 BTU

- Wheelhouse: 8000 BTU

- Temperature control panel for each air conditioning unit

- Sea outlet for water used for air conditioning

- Two condense collection trays with vent and pump for outboard discharge (see "gray water system")

Other Systems

- Humphree X-450 Interceptor

- Engine room dry chemical fire extinguishing system with manual control

- Carbon monoxide detection system composed of three sensor located in Master cabin, Guest cabin and Dinette/Galley (for USA version)

Equipment

- One telescopic boat hook

- Two mooring lines

- Fender lines: 18 m (59'1'')

- Six fenders

- Six black fender covers

- One Owner's manual

- One wooden boat model

- Two floating keyrings

- One large bag with logo for manuals

- One remote control holder with logo
